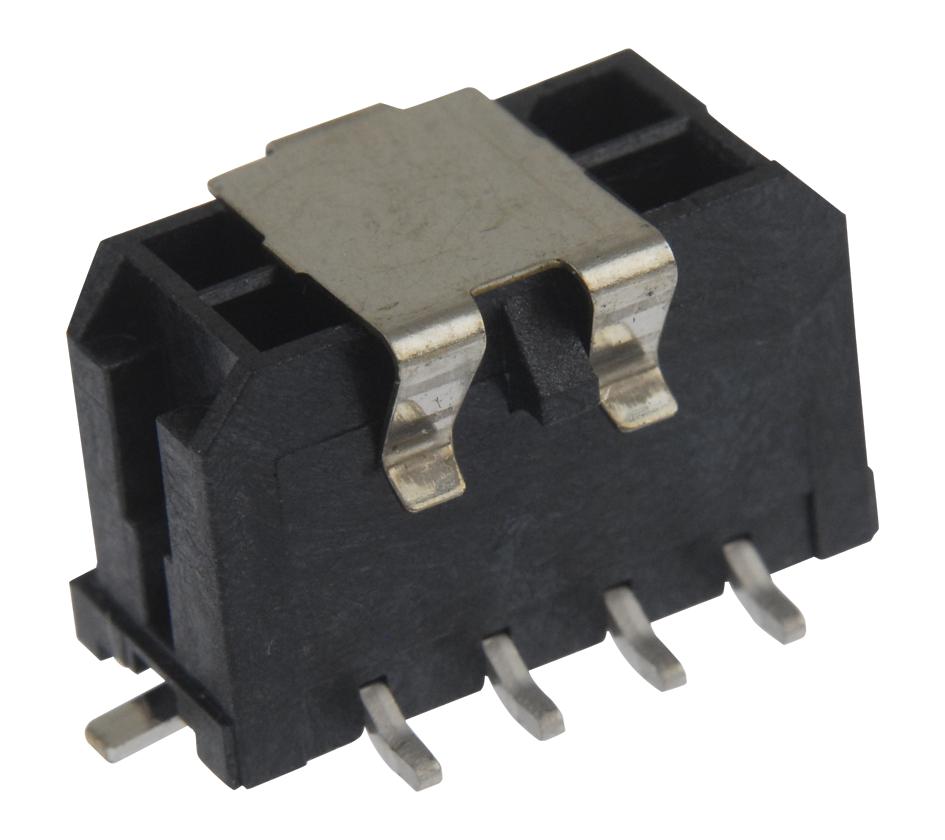

MOLEX 430450819 Micro-Fit Connector
Micro-Fit 3.0 connectors offer a compact, reliable connection solution with a 3mm pitch, capable of carrying up to 8.5A. Constructed from high-temperature liquid crystal polymer (LCP), these connectors feature fully polarized housings, isolated terminals, and a positive latching mechanism that ensures secure, vibration-resistant connections. They are suitable for applications in automotive, electronics, medical, communications, and energy systems, providing durability, safety, and efficiency. Their design includes gold-plated contacts, multiple circuits, and compatibility with surface-mount technology, ensuring versatile integration into diverse electronic systems.
MOLEX 430450819 Micro-Fit Connector Specifications:
- Circuits (Loaded): 8
- Circuits (maximum): 8
- Pitch: 3.00mm
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Material - Resin: High-Temperature Liquid Crystal Polymer
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Color - Resin: Black
- Durability (mating cycles max): Not specified
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.64mm
- Operating Temperature Range: -40°C to +105°C
- Surface Mount Compatibility: Yes
- Packaging: Embossed Tape on Reel
- Dimensions: 3.00mm pitch, 17.64mm height
- Certification: CSA, UL, RoHS Compliant
Buy the Molex 4300450819 – Reliable Micro-Fit 3.0 Connector for Industrial Applications
Order the Molex Micro-Fit Connector today to ensure reliable, high-performance electrical connections with a compact 3mm pitch. Designed for demanding applications, it features gold-plated contacts, polarized housing, and secure latching to prevent disconnections. Suitable for automotive, medical, energy, and consumer electronics, this connector provides excellent durability and safety with a maximum current of 8.5A and operating temperature up to 105°C. Easy to install, surface-mount design ensures versatile integration into your electronic projects. Purchase online now for fast delivery and quality assurance.
Get Molex 4300450819 today—built for precision, high-current capacity, and long-lasting durability in electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 430450819?
You can click on the BUY or RFQ button to purchase 430450819 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450819?
You can download the 430450819 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450819?
MOLEX
