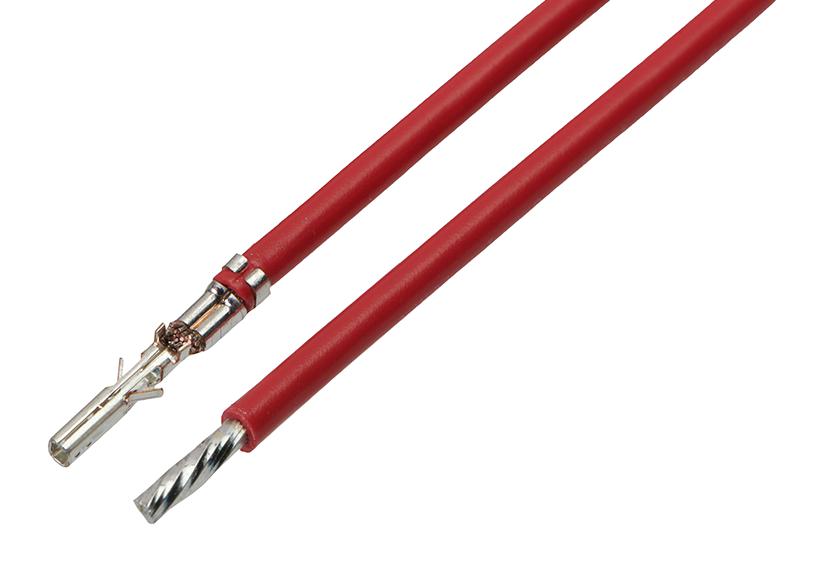

MOLEX 2147612203 Micro-Fit 3.0 Female-to-Pigtail
The MOLEX 2147612203 is a pre-crimped lead connector designed for versatile applications including power distribution, wire-to-board connections, and wire-to-wire links. This Micro-Fit 3.0 female-to-pigtail connector features gold-plated contacts for enhanced conductivity and corrosion resistance, a red resin color for easy identification, and a 225.00mm lead length. It is RoHS compliant and suitable for use in various industrial and commercial settings where reliable electrical connections are required.
MOLEX 2147612203 Micro-Fit 3.0 Female-to-Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- description: Pre-Crimped Lead Micro-Fit 3.0 Female-to-Pigtail, Gold (Au) Plated, 225.00mm Length, 22 AWG, Red
- product_family: Cable Assemblies
- series: 214761
- application: Power, Wire-to-Board, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_to_connector: Micro-Fit 3.0 Crimp Terminals
- cable_length: 225.00mm
- circuits_loaded: 1
- color_resin: Red
- gender: Female-Pigtail
- material_metal: Phosphor Bronze
- material_plating_mating: Gold
- material_plating_termination: Tin
- net_weight: 1.079/g
- plating_min_mating: 0.762µm
- plating_min_termination: 2.540µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.85mm
- wire_size_awg: 22
- wire_cable_type: UL 10002
- current_maximum_per_contact: 8.5A
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- upc: 193264574599
- use_with: Micro-Fit 3.0 Receptacle Housings 43025, 43645; Micro-Fit BMI Panel Mount Receptacle Housings 44133, 46623
