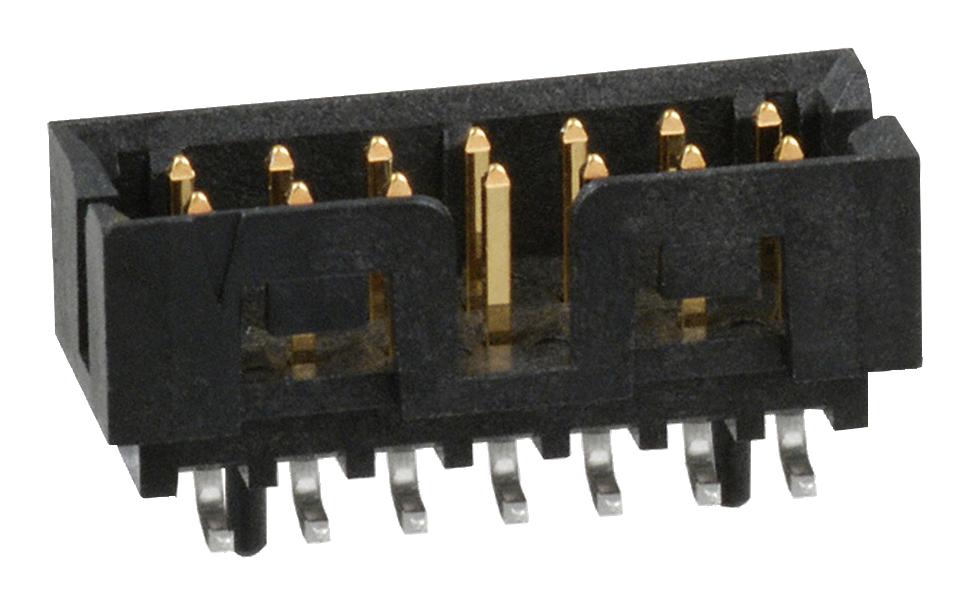

MOLEX 878320606 Milli-Grid Header
The MOLEX 87832-0606 Milli-Grid Header is a robust and reliable connector solution for PCB applications. Designed with a surface mount configuration and shrouded design, it ensures secure and protected connections. Featuring 6 circuits and gold plating on the mating interface, this connector provides excellent electrical performance and durability. It is commonly used in automotive applications and other demanding environments where reliable wire-to-board connectivity is essential. The header's vertical orientation and PCB locator contribute to ease of assembly and precise positioning.
MOLEX 878320606 Milli-Grid Header Specifications:
- status: Active
- overview: Milli-Grid Connector System
- description: Milli-Grid Header, Surface Mount, Vertical, Shrouded, Lead-Free, 6 Circuits, 0.38µm Gold (Au) Plating, with Locking Window, Pick-and-Place Cap, PCB Locator, Embossed Tape on Reel
- agency_certification: CSA LR19980, UL E29179
- series: 87832
- application: Automotive
- circuits_loaded: 6
- circuits_maximum: 6
- color_resin: Black
- durability_mating_cycles: 100
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: No
- guide_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Gold
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 0.500
- number_of_rows: 2
- orientation: Vertical
- pcb_locator: No
- pcb_retention: None
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface_mm: 2.00
- pitch_termination_interface_mm: 2.00
- plating_min_mating_um: 0.381
- plating_min_termination_um: 1.905
- polarized_to_pcb: No
- shrouded: Fully
- stackable: No
- surface_mount_compatible: Yes
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Green Image
- halogen_free_status: Not Low-Halogen
- current_max_per_contact_a: 2.0
- voltage_max_v: 125
- lead_free_process_capability: REFLOW
- max_cycles_at_max_process_temp: 003
- process_temperature_max_c: 260
- material_info_reference_drawing_numbers: PK-87831-001-001, PK-87832-300-001, PS-87831-027-001, SD-87832-0001-001
- temperature_range_operating_c: -55 to +105
