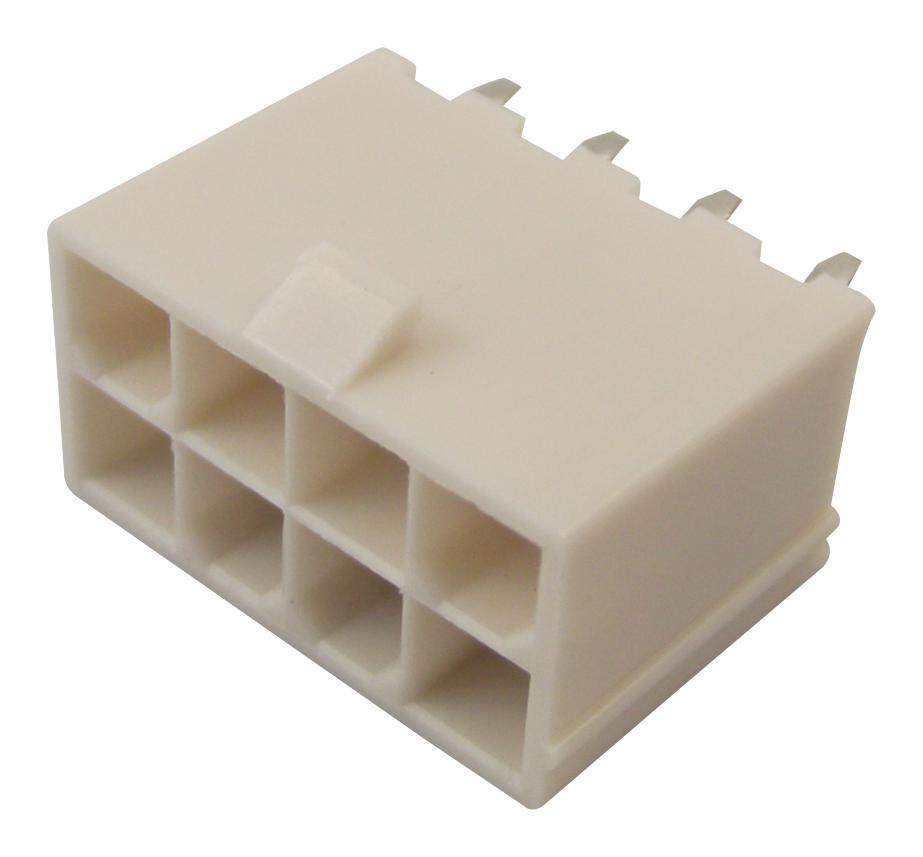

MOLEX 460150202 Power Connector
The Mini-Fit Plus Header is a vertical, dual-row power connector designed for wire-to-board applications, offering a current rating of 13A per circuit with a maximum voltage of 600V. Made from durable PA Polyamide Nylon 6/6 with UL 94V-0 flammability, it features tin-plated copper alloy contacts for reliable electrical connections. The connector supports 2 circuits and has a PCB tail length of 1.80mm, operating within a temperature range of -40°C to +105°C. Its shrouded, polarized, fully-mated design ensures secure installation for industrial power and electronics systems.
MOLEX 460150202 Power Connector Specifications:
- Current = 13A max. per circuit
- Voltage = 600V maximum
- Material - Metal: Copper Alloy, Plating: Tin
- Material - Resin: PA Polyamide Nylon 6/6, UL 94V-0
- Temperature Range: -40°C to +105°C
- PCB Tail Length: 1.80mm
- Number of Rows: 2
- Orientation: Vertical
- Color - Resin: Natural
- Plating minimum - Mating: 2.540μm
- Plating minimum - Termination: 1.270μm
- Locking: Shrouded, polarized to mating part, and PCB
- Physical Dimensions: Pitch 4.20mm, Net weight 0.763g
- Connector Type: Power, Wire-to-Board, through-hole termination
- Durability: Support multiple mating cycles
- Compliance: RoHS, Low-Halogen, EU ELV compliant
Buy the Molex 0460150202 – Reliable Power Connector for Industrial Applications
Purchase the Molex 0460150202 power connector online today to ensure reliable, high-current power connections for your industrial, automation, or electronic projects. Designed with dual circuits, shrouded and polarized features, and tin-plated contacts, this connector guarantees long-lasting durability and secure mating. Its high-quality PA polyamide material withstands temperatures from -40°C to +105°C, making it ideal for demanding applications. Convenient online ordering offers quick access to this essential component, supporting your efficiency and project success in power and industrial electronics.
Get Molex 0460150202 today—built for precise, secure power connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 460150202?
You can click on the BUY or RFQ button to purchase 460150202 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 460150202?
You can download the 460150202 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 460150202?
MOLEX
