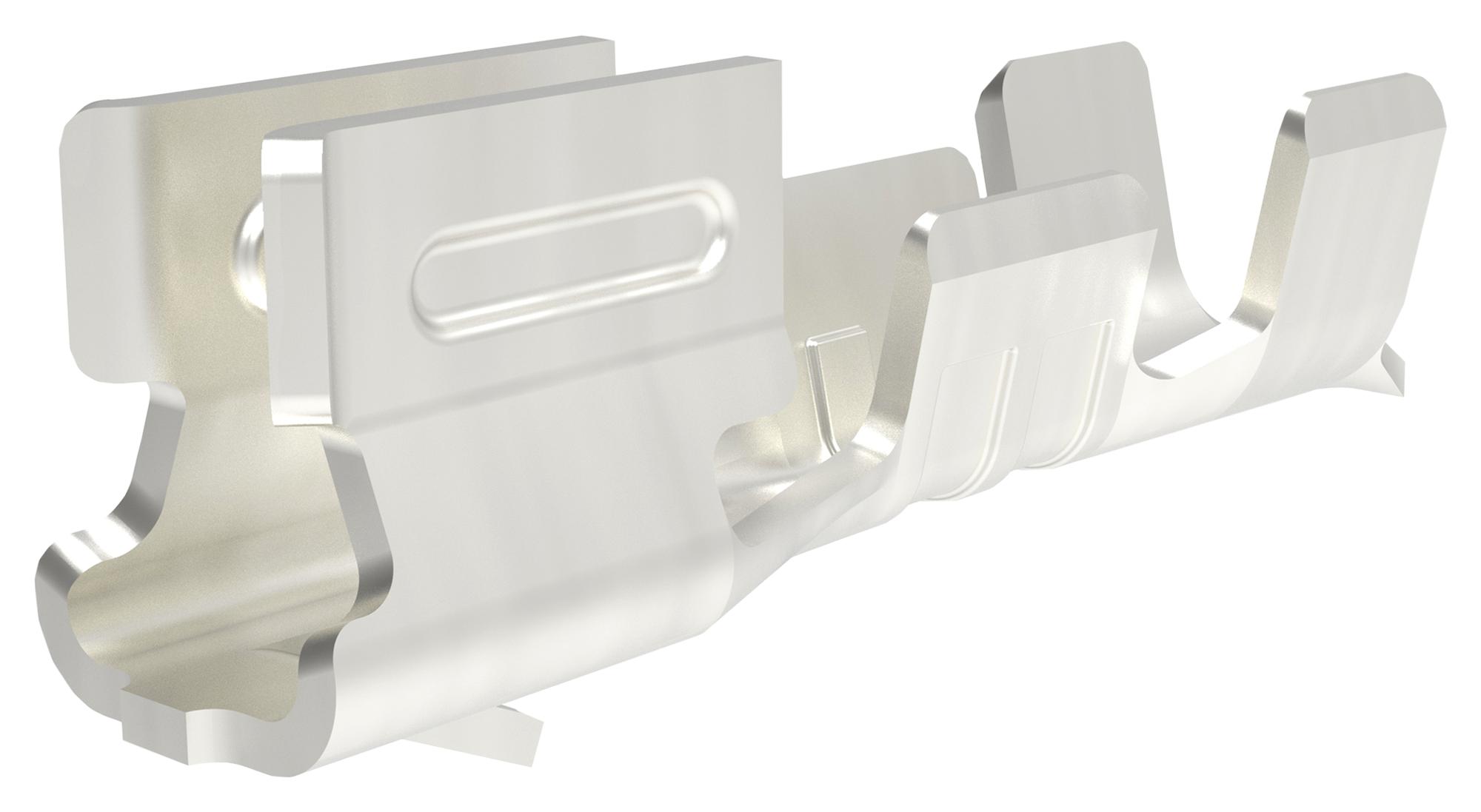

MOLEX 466261305 Crimp Terminal
The LINK 250 Female Crimp Terminal is designed for reliable wire-to-board connections in industrial and electronic applications. Made from copper alloy with tin plating, it supports 22-24 AWG wire sizes and allows up to 6.5A current at 250V AC/DC. Suitable for crimp or compression termination, the terminal offers durability up to 25 mating cycles. Packaged on reels, it is compatible with the LINK 250 receptacle housing. This high-quality terminal ensures secure, corrosion-resistant connections for various electronic assemblies and industrial equipment.
MOLEX 466261305 Crimp Terminal Specifications:
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 22, 24
- Wire Diameter: 0.20-0.33 mm
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC/DC
- Durability (mating cycles max): 25
- Net Weight: 0.051 g
- Packaging Type: Reel
- Termination Interface: Crimp or Compression
- Dimensions: Wire Insulation Diameter 1.42mm-1.60mm
Buy the Molex 0466261305 – Reliable Crimp Terminal for Industrial Applications
Secure your electronic or industrial wiring with the Molex Crimp Terminal, designed for reliable wire-to-board connections. Made from durable copper alloy and tin-plated for corrosion resistance, it supports 22-24 AWG wires, with a maximum current of 6.5A at 250V. Packaged on reels for ease of use, this terminal is ideal for crimp or compression terminations in various applications. Ensure safe, stable, and long-lasting connections in your manufacturing or maintenance projects by choosing this high-quality component.
Buy Molex 0466261305 now and experience unmatched reliability and secure connections for your electronic or industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 466261305?
You can click on the BUY or RFQ button to purchase 466261305 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 466261305?
You can download the 466261305 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 466261305?
MOLEX
