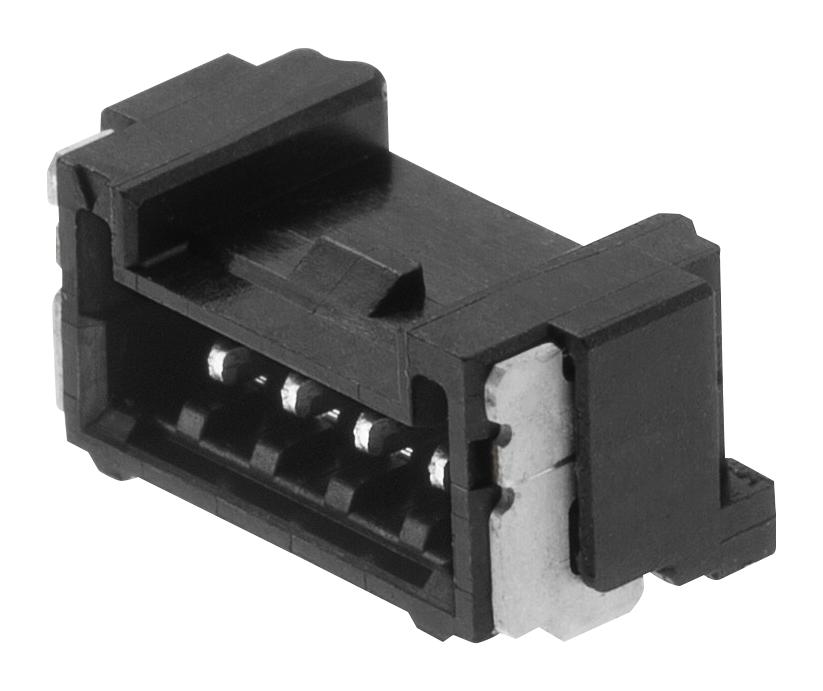

MOLEX 5055670471 Wire-to-Board Connector
The Micro-Lock PLUS Right Angle Header is a 1.25mm pitch, single row, wire-to-board connector designed for reliable and compact electrical connections. Featuring tin-bismuth plating, it supports up to 4 circuits with a durable black resin housing, and is compliant with RoHS, ELV, and halogen-free standards. With a maximum current rating of 1.5A per contact, it is rated for operating temperatures from -40°C to +105°C. This easy-to-mate connector offers robust electrical performance, suitable for densely populated circuit boards and industrial applications.
MOLEX 5055670471 Wire-to-Board Connector Specifications:
- Pitch: 1.25mm
- Number of Circuits: 4
- Color: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin-Bismuth
- Material - Plating Termination: Tin-Bismuth
- Material - Resin: Polyamide
- Operating Temperature Range: -40°C to +105°C
- Current per Contact: 1.5A
- Maximum Voltage: 50V AC/DC
- Durability (Mating Cycles): 30
- Surface Mount Compatible: Yes
- Orientation: Right Angle
- Connection Style: Embossed Tape on Reel
- RoHS Compliance: Yes
- Halogen-Free: No
- UL Listed: Yes
Buy the Buy Molex Micro-Lock PLUS Part Number 5055670471 Online
Experience reliable and efficient electrical connections with the Molex Micro-Lock PLUS Wire-to-Board Connector. Featuring a 1.25mm pitch, this connector supports up to 4 circuits with durable tin-bismuth plating and a resistant black housing. Ideal for high-density applications, it offers quick mating with a maximum current rating of 1.5A per contact and temperature tolerance up to +105°C. Perfect for industrial, consumer electronics, and automation systems, this connector guarantees stable and long-lasting performance in your electronic assemblies.
Get Molex 5055670471 today—built for precision and long-lasting durability in compact electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 5055670471?
You can click on the BUY or RFQ button to purchase 5055670471 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5055670471?
You can download the 5055670471 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5055670471?
MOLEX
