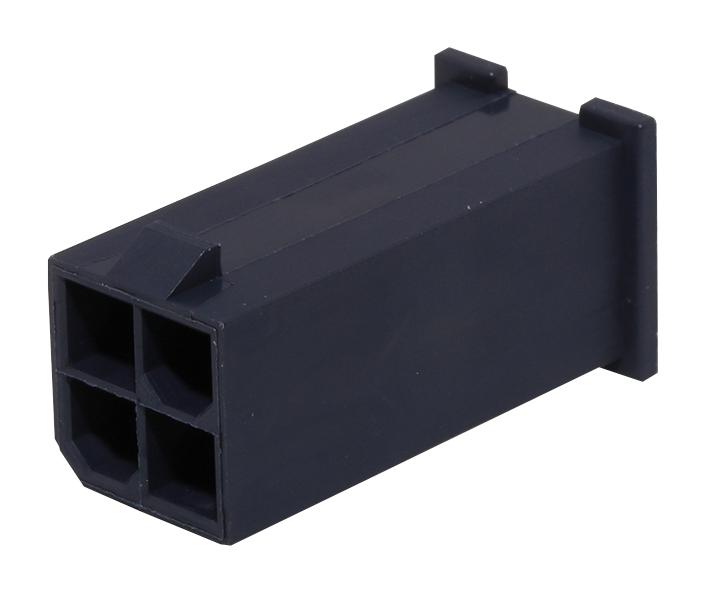

MOLEX 469930411 Mini-Fit Jr. Power Connector
The MOLEX 46993-0411 is a Mini-Fit Jr. power connector, specifically a plug housing designed for robust power transmission in various applications. This connector features a dual-row configuration with four circuits, making it suitable for applications requiring multiple power connections. Constructed from PA Nylon 6/6, it offers excellent durability and insulation, meeting UL 94V-2 flammability standards. The connector is glow-wire capable and polarized to ensure proper mating. It is commonly used in wire-to-board and wire-to-wire connections across diverse industries, including automotive, industrial equipment, and consumer electronics. Its robust design and reliable performance make it a preferred choice for demanding power applications.
MOLEX 469930411 Mini-Fit Jr. Power Connector Specifications:
- Part Number: 0469930411
- Status: Active
- Overview: Mini-Fit Jr. Power Connectors
- Description: Mini-Fit Jr. Plug Housing, Dual Row without Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 4 Circuits, Glow-Wire Capable, Black
- Product Family Series: 46993
- Application: Wire-to-Board, Wire-to-Wire
- Material - Resin: Nylon
- Flammability: 94V-2
- Gender: Plug
- Number of Rows: 2
- Polarized to Mating Part: Yes
- Stackable: No
- Operating Temperature Range: -40°C to +105°C
- Maximum Current per Contact: 13.0A
- Circuits (maximum): 4
- Color: Black
- Mates With: 46992 Receptacle Housing
- Use With: 5558 Male Terminal, 46012 Mini-Fit Plus Crimp Terminal
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained Per -ED/88/2018 (15 January 2019)
- Halogen-Free: Not Low-Halogen
- China ROHS: Green Image
- RoHS Phthalates: Not Contained
Buy the 46993-0411 MOLEX Mini-Fit Jr. Power Connector | myMectronic
Purchase the MOLEX 46993-0411 Mini-Fit Jr. Power Connector securely and reliably online.
Buy Now
