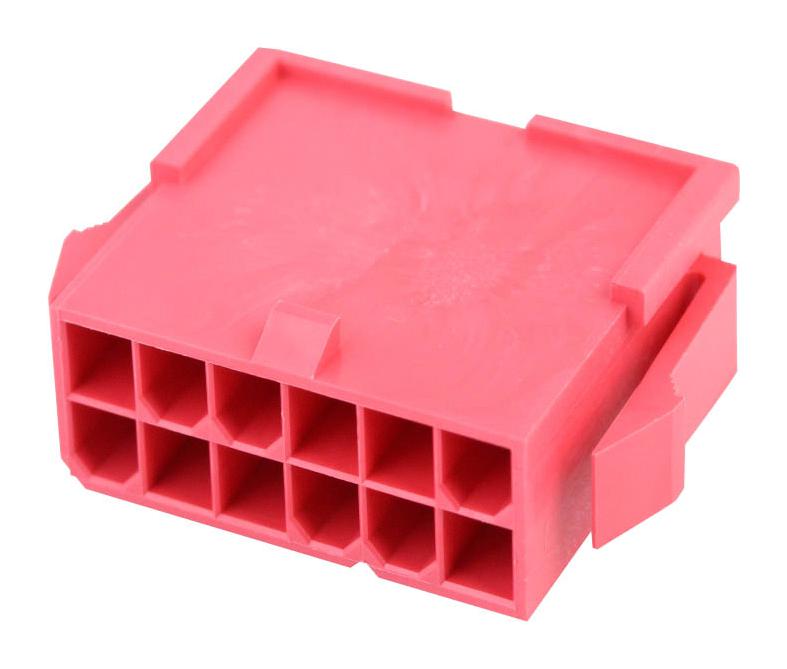

MOLEX 469931020 Mini-Fit Versa Color Plug Housing
The MOLEX 46993-1020 Mini-Fit Versa Color Plug Housing is a robust connector solution for power applications, commonly used in wire-to-board and wire-to-wire connections. Constructed from Nylon 6/6, this housing offers excellent durability and is UL 94V-0 rated for enhanced safety. The dual-row design accommodates 10 circuits, and the red color provides visual differentiation. It is glow-wire capable and features panel mount ears for secure attachment. This connector is designed to mate with Mini-Fit Versa Color receptacles and utilizes Mini-Fit male crimp terminals.
MOLEX 469931020 Mini-Fit Versa Color Plug Housing Specifications:
- circuits_maximum: 10
- color_resin: Red
- gender: Plug
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 3.130
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 4.20
- pitch_termination_interface_mm: 4.20
- polarized_to_mating_part: Yes
- temperature_range_operating_c: -40° to +105°
- upc: 195842022164
