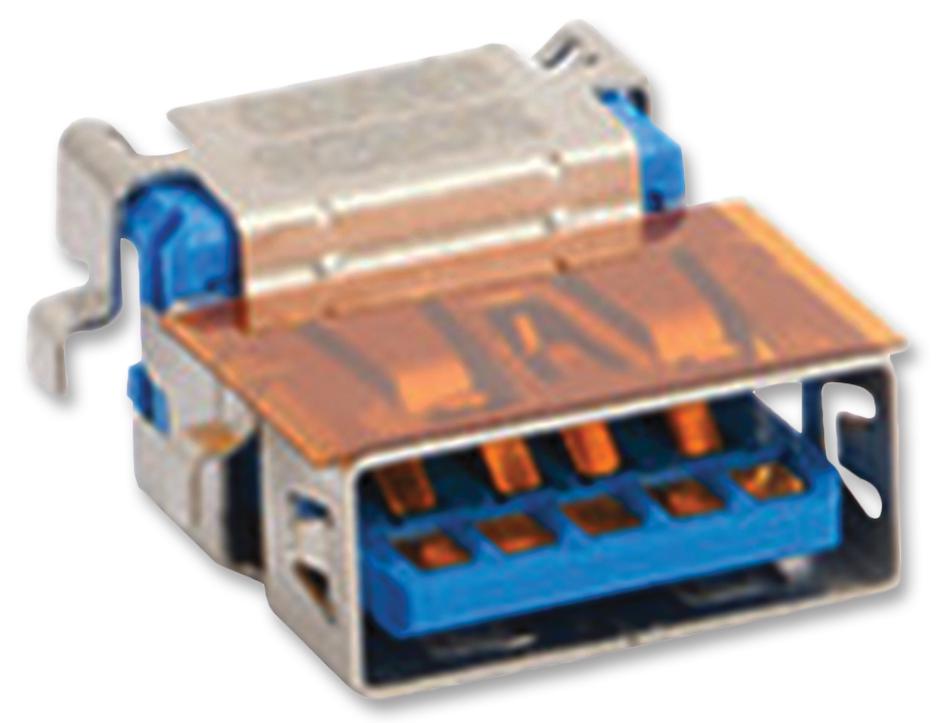

MOLEX 483950003 USB Connector
This USB 3.0 Type A Receptacle features a right-angle design with through-hole mounting, high-temperature blue nylon housing, and gold-plated contacts for reliable data transfer. It supports a maximum of 9 circuits, withstands 5000 mating cycles, and operates within -20°C to +85°C. Crafted from copper alloy with matte tin termination plating, it offers durability and corrosion resistance. The receptacle is polarization-compatible, PCB-retention equipped, and suited for wire-to-board applications with a pitch of 2.00mm or 2.50mm, ensuring secure and high-speed connections for industrial and electronic systems.
MOLEX 483950003 USB Connector Specifications:
- Type: USB 3.0, Type A, Right-Angle, Through Hole
- Color: Blue Resin
- Material - Metal: Copper Alloy
- Plating - Contacts: Gold
- Plating - Termination: Matte Tin
- Number of Circuits: 9
- Durability: 5000 mating cycles
- Operating Temperature: -20°C to +85°C
- Maximum Voltage: 30V AC/DC
- Maximum Current per Contact: 1.8A
- PCB Tail Length: 1.50mm
- Pitch - Mating Interface: 2.00mm or 2.50mm
- Orientation: Right Angle
- Net Weight: 1.800g
- Connector Gender: Female
- PCB Retention: Yes
- Polarized to Mating Part: Yes
- Ports: 1
- Application: Wire-to-Board
- Mechanical Durability: 5000 mating cycles
Buy the Molex USB 3.0 – Reliable USB Type A Receptacle for Industrial Applications
Order the Molex USB 3.0 Type A right-angle receptacle online today and ensure your electronic systems operate seamlessly. Designed for durability with 5000 mating cycles, it features a blue nylon housing, gold-plated contacts, and a 2.00mm or 2.50mm pitch for secure wiring. Its high-temperature thermoplastic ensures stability in demanding environments. With a compact footprint, PCB retention, polarization, and operating temperature up to 85°C, this connector is ideal for industrial, data, and communications applications, offering dependable and high-speed connections.
Buy Molex USB 3.0 type A receptacle now and enhance your industrial data connection reliability with this robust, high-performance component.
Frequently Asked Questions
Where can I buy MOLEX 483950003?
You can click on the BUY or RFQ button to purchase 483950003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 483950003?
You can download the 483950003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 483950003?
MOLEX
