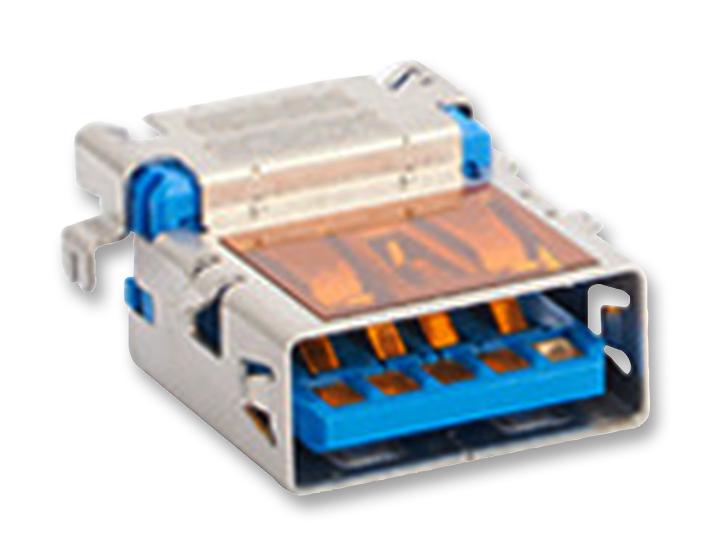

MOLEX 483980003 USB 3.0 Connector
This high-durability USB 3.0 Type A connector offers reliable SuperSpeed data transfer up to 5.0 Gbps, supporting 5,000 mating cycles. Designed for high-temperature reflow processes up to 255°C, it features halogen-free nylon housing in a standard blue color, available in various mounting styles including reverse, top, and upright orientations. With a maximum voltage of 30V DC/AC and current rating of 1.8A, its copper alloy contacts and stainless steel shell ensure durability. The connector supports low contact resistance, multiple contact heights, and is RoHS compliant, making it suitable for high-end computing, consumer electronics, automotive, and home appliances.
MOLEX 483980003 USB 3.0 Connector Specifications:
- Housing Material: Nylon 9T, UL94V-0, Blue
- Contact Material: Copper Alloy
- Shell Material: Stainless Steel
- Plating: Gold (Au) 15µ" on contacts, Nickel (Ni) overall
- Voltage Max: 30V DC/AC
- Current Max: 1.8A for VBUS and GND, 0.25A for others
- Dielectric Withstanding Voltage: 100VAC (RMS)
- Insulation Resistance: 100 megohms
- Contact Resistance: 30 milliohms (VBUS/GND), 50 milliohms (others)
- Housing Color: Blue
- Mounting Styles: On-board, top-mount, reverse-mount, upright, vertical
- Contact Heights: 0.36mm to 6.09mm
- Durability: 5,000 mating cycles
- Temperature Range: -20°C to +85°C
- RoHS Compliant
Buy the Buy Molex USB 3.0 Connector Part Number 483980003 Online
Purchase the Molex USB 3.0 Connector Part Number 483980003 online today and enjoy reliable SuperSpeed data transfer up to 5.0 Gbps. Designed with high-temperature reflow capability up to 255°C and halogen-free plastic housing, it offers exceptional durability for high-end computing, consumer electronics, and automotive applications. Available in various mounting styles including on-board, reverse, and upright, this connector ensures secure, consistent connections over 5,000 mating cycles. Its robust contact materials and compliance with RoHS standards make it an ideal choice for demanding electronic systems requiring fast, dependable connectivity.
Buy Molex 483980003 now and experience unmatched reliability and high-speed data transfer capabilities for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 483980003?
You can click on the BUY or RFQ button to purchase 483980003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 483980003?
You can download the 483980003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 483980003?
MOLEX
