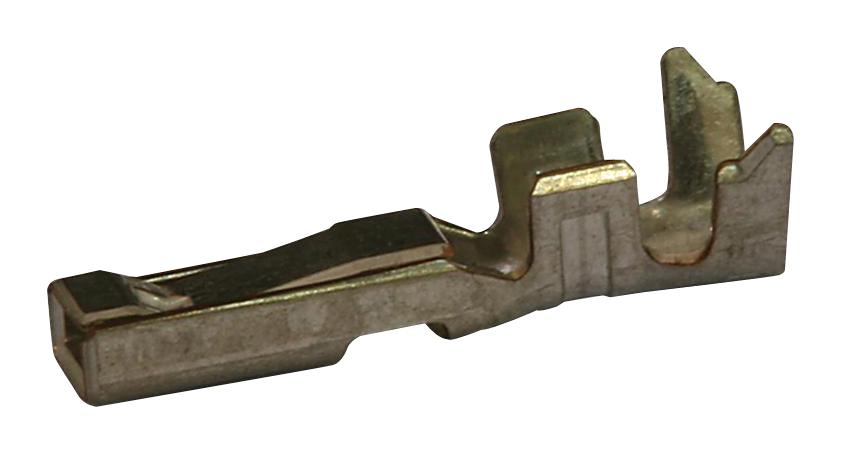

MOLEX 500398100 Waterproof Crimp Terminal
The Mizu-P25 Miniature Waterproof Connectors are designed with a 2.50mm pitch, offering reliable waterproof crimp terminals suitable for signal and wire-to-wire applications. Made from phosphor bronze with tin plating, these crimp terminals ensure durable, corrosion-resistant connections. They are rated for up to 250V and are compatible with wire sizes of 20 to 22 AWG, with insulation diameters of 1.80-1.90mm. Ideal for applications requiring waterproof, low-profile, and high-quality connections in challenging environments.
MOLEX 500398100 Waterproof Crimp Terminal Specifications:
- Pitch: 2.50mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Insulation Diameter: 1.80-1.90mm
- Wire Size: 20, 22 AWG
- Voltage - Maximum: 250V
- Net Weight: 60.5 mg per terminal
- Packaging Type: Bag
- Product Family: Mizu-P25 Waterproof
- Gender: Female
- Crimp or Compression: Crimp
- RoHS Compliance: Yes
- EU ELV, China RoHS: Compliant
Buy the Molex Series Mizu-P25 Waterproof Crimp Terminal: 0500398100
Enhance your waterproof connection applications with Molex 0500398100 crimp terminals, crafted for durability, corrosion resistance, and reliable performance in harsh environments. Made from phosphor bronze with tin plating, these terminals are suitable for 20-22 AWG wires and rated for up to 250V. Their compact design ensures easy assembly in tight spaces, perfect for signal and wire-to-wire connections requiring high-quality, waterproof features. Order online today for precision, dependability, and peace of mind.
Buy Molex 0500398100 waterproof crimp terminal now and experience unmatched reliability and performance in demanding conditions.
Frequently Asked Questions
Where can I buy MOLEX 500398100?
You can click on the BUY or RFQ button to purchase 500398100 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 500398100?
You can download the 500398100 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 500398100?
MOLEX
