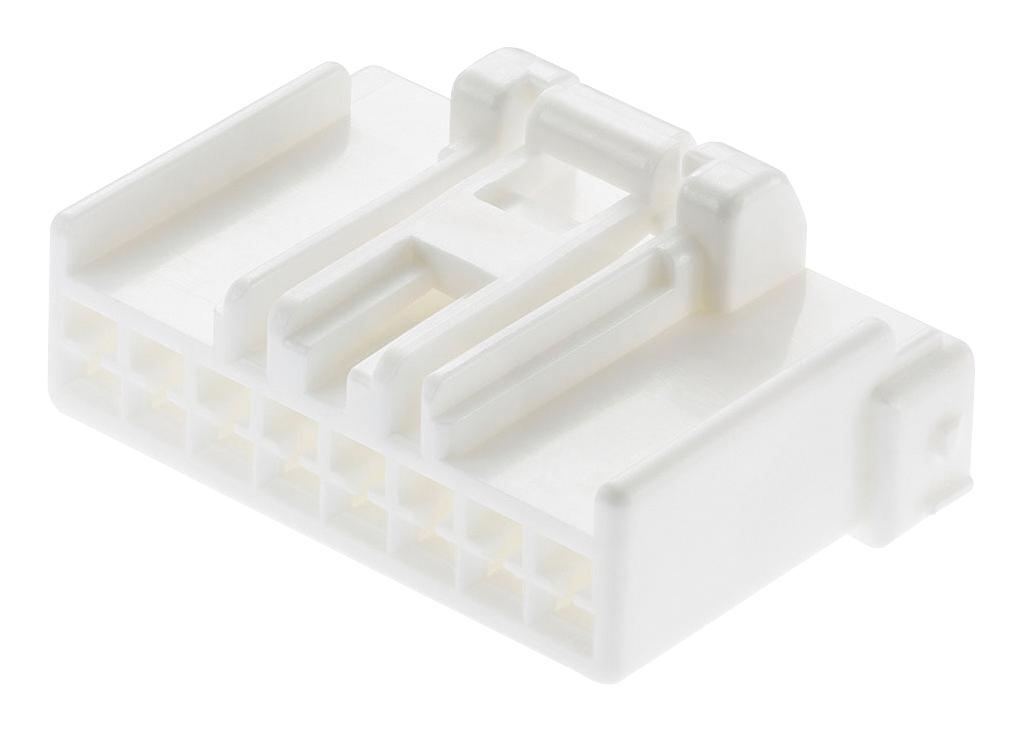

MOLEX 5005920500 Wire-to-Wire Receptacle
The 500592 series single-row, 2.50mm pitch mini wire-to-wire receptacle housing offers a compact, reliable connection suitable for consumer, home appliances, and industrial automation. Made with flame-retardant PBT UL94V-0 housing, it ensures safety and durability in operating temperatures from -40°C to +85°C. It supports up to 30 mating cycles, provides a maximum voltage of 250VAC and a current of 3A. Features include terminal position assurance (TPA), a positive lock with audible and tactile feedback, and low insertion force for easy installation, making it a versatile and dependable electrical connector.
MOLEX 5005920500 Wire-to-Wire Receptacle Specifications:
- Pitch - Mating Interface: 2.50mm
- Number of Circuits: 5
- Material - Resin: Polyester (PBT) UL94V-0
- Color - Resin: Natural
- Maximum Voltage: 250VAC
- Current Rating: 3A
- Operating Temperature Range: -40°C to +85°C
- Number of Rows: 1
- Mating Cycles: Up to 30
- Features: Terminal Position Assurance, Positive Lock, Low Insertion Force
- Application: Signal, Wire-to-Wire, Consumer, Industrial Automation
Buy the Molex Series 500592 Wire-to-Wire Receptacle: 5005920500
Enhance your electrical connections with this dependable 2.50mm pitch wire-to-wire receptacle from Molex. Designed with a flame-retardant UL94V-0 PBT housing and terminal position assurance, it guarantees secure connections and high durability. Suitable for various industrial, consumer, and automation applications, it operates over a wide temperature range of -40°C to +85°C. With support for up to 30 mating cycles, a maximum voltage of 250VAC, and a current of 3A, it offers easy mating and reliable long-term performance. Perfect for professional and DIY projects alike.
Order your Molex Series 500592 2.50mm Pitch Receptacle today and ensure reliable, secure electrical connections for your automation and home appliance projects.
