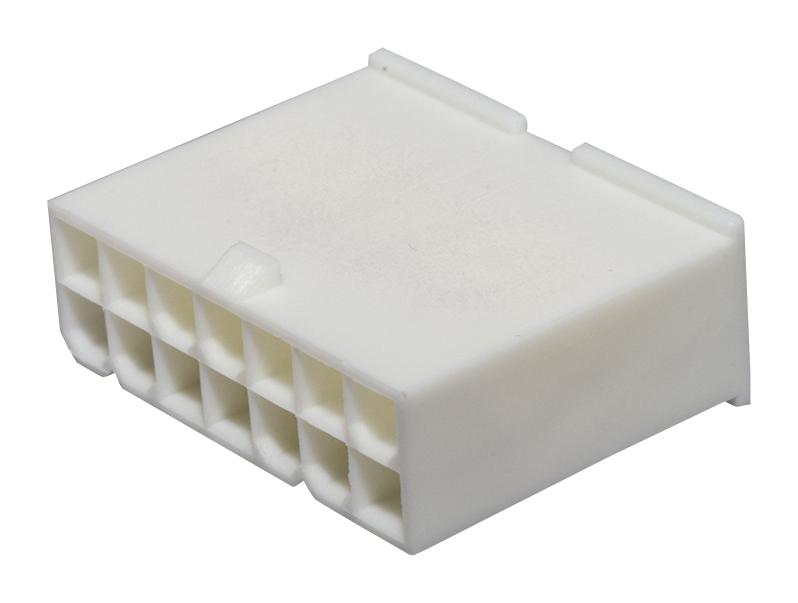

MOLEX 39013149 Mini-Fit Jr. Power Connector
The MOLEX 39-01-3149 Mini-Fit Jr. Power Connector is a dual-row plug housing designed for power applications. It accommodates up to 14 circuits and is constructed with a durable nylon resin, offering excellent insulation and mechanical strength. The connector is UL 94V-0 rated, ensuring compliance with stringent flammability standards. It is commonly used in wire-to-board and wire-to-wire connections in various industrial and consumer electronics applications. Current is rated at 13A per circuit when mated with a compatible receptacle and terminals.
MOLEX 39013149 Mini-Fit Jr. Power Connector Specifications:
- overview: Mini-Fit Jr. Power Connectors
- product_family: Crimp Housings
- application: Power, Wire-to-Board, Wire-to-Wire
- circuits_maximum: 14
- color_resin: Natural
- flammability: 94V-0
- gender: Plug
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 4.20mm
- pitch_termination_interface: 4.20mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating: -40° to +105°C
- current_maximum_per_contact: 13.0A
- lead_free_process_capability: N/A
- material_info_engineering_number: 5559-14P1-210
- mates_with: Receptacle Housing 39012145
- use_with: Mini-Fit Jr. Male Crimp Terminals 5558, Mini-Fit Male Grounding Crimp Terminals 30490, Mini-Fit Plus Crimp Terminal 46012
