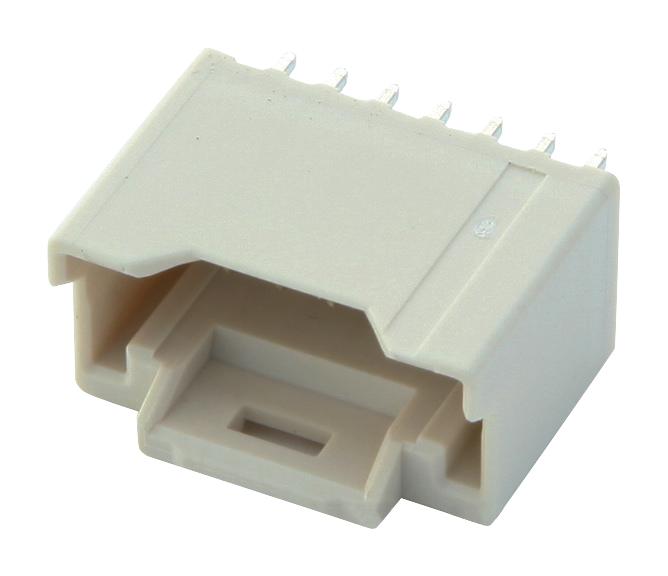

MOLEX 5016454020 iGrid Wire-to-Board Header
The MOLEX 5016454020 iGrid Wire-to-Board Header is a robust connector solution for wire-to-board applications. With a 2.00mm pitch and dual-row configuration, it provides a compact and efficient connection. The vertical orientation and tin plating ensure reliable signal transmission, while the integrated PCB locator simplifies assembly. This header is suitable for a wide range of industrial applications requiring secure and dependable wire-to-board connectivity, offering durability and ease of integration.
MOLEX 5016454020 iGrid Wire-to-Board Header Specifications:
- pitch_mating_interface: 2.00mm
- circuits_loaded: 40
- circuits_maximum: 40
- durability_mating_cycles_max: 30
- flammability: 94V-0
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- pcb_tail_length: 3.20mm
- temperature_range_operating: -40° to +105°C
- current_maximum_per_contact: 2.0A
- voltage_maximum: 250V AC (RMS)/DC
- pcb_thickness_recommended: 1.20mm, 1.60mm
- number_of_rows: 2
- orientation: Vertical
Buy the 5016454020 MOLEX iGrid Wire-to-Board Header | myMectronic
Purchase the MOLEX 5016454020 iGrid Wire-to-Board Header securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 5016454020?
You can click on the BUY or RFQ button to purchase 5016454020 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5016454020?
You can download the 5016454020 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5016454020?
MOLEX
