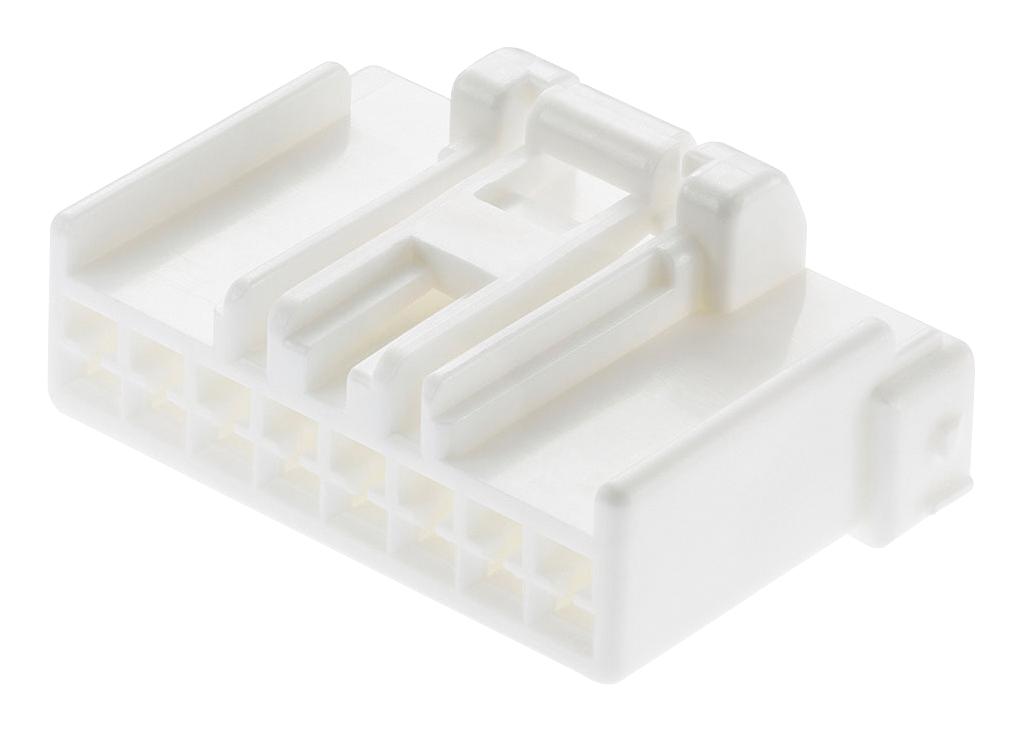

MOLEX 5005930500 Mini Wire-to-Wire Connector System
The 500593 series single row 2.50mm pitch CP-2.5 Mini Connector System is ideal for compact devices, delivering reliable electrical and mechanical connectivity. Suitable for consumer electronics, home appliances, industrial equipment, and automation systems, it features a flame-retardant PBT housing with UL94V-0. Operating from -40°C to +85°C, it supports up to 30 mating cycles. It handles a maximum voltage of 250VAC and current of 3A, with a terminal position assurance feature for secure wire insertion. Compatible with CP-2.5 Mini receptacles and male crimp terminals, ensuring easy assembly.
MOLEX 5005930500 Mini Wire-to-Wire Connector System Specifications:
- Pitch: 2.50mm
- Number of Circuits: 5
- Material - Resin: Polyester
- Color: Natural
- Operating Temperature Range: -40°C to +85°C
- Electrical Ratings: 250VAC, 3A
- Mating Cycles: Up to 30
- Housing Flame-Retardant: UL94V-0
- Gender: Plug
- Packaging: Bag
- Reference Drawing: PS-500592-001-001
Buy the Molex Series CP-2.5 Mini Connector: 5005930500
Order the Molex Mini Wire-to-Wire Connector System online today and enjoy quick, secure assembly for your electronic and industrial projects. This 2.50mm pitch connector offers reliable performance, supporting up to 30 mating cycles, and operates within a temperature range of -40°C to +85°C. Made from UL94V-0 flame-retardant polyester, it ensures safety and durability. With its terminal position assurance feature, correct wire insertion is guaranteed, making it ideal for consumer electronics, appliances, and automation systems. Purchase now to secure dependable connectivity.
Buy Molex 5005930500 now and experience reliable electrical connection for compact electronics and industrial systems.
Frequently Asked Questions
Where can I buy MOLEX 5005930500?
You can click on the BUY or RFQ button to purchase 5005930500 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5005930500?
You can download the 5005930500 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5005930500?
MOLEX
