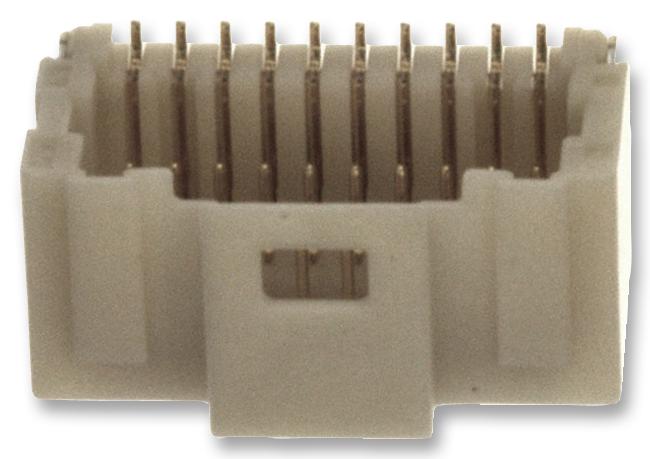

MOLEX 5015712007 Wire-to-Board Connector
The Pico-Clasp™ wire-to-board connector is a 1.00mm pitch PCB header designed with dual rows and a right-angle orientation. It features 20 circuits, high durability with up to 30 mating cycles, and is made from natural resin with gold plating for reliable electrical contact. This surface-mount component operates within -40°C to +105°C, supporting currents up to 1.0A per contact and a maximum voltage of 50V AC/DC. Suitable for signal applications, it provides robust lock-to-mating part engagement and is compliant with RoHS and halogen-free standards, ensuring environmentally friendly operation.
MOLEX 5015712007 Wire-to-Board Connector Specifications:
- Pitch: 1.00mm
- Number of Circuits: 20
- Material - Resin: High-temperature thermoplastic
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating: Gold-plated contacts
- Color - Resin: Natural
- Durability: 30 mating cycles
- Operating Temperature Range: -40°C to +105°C
- Electrical Current: 0.8A, 1.0A per contact
- Voltage Rating: 50V AC/DC
- Surface Mount Compatible: Yes
- Locking Feature: Yes
- Guided for Mating: No
- RoHS Compliant: Yes
- Halogen-Free: No
- Environmental Standards: RoHS, China RoHS
- Packaging: Embossed tape on reel
- Application: Signal, wire-to-board connections
Buy the Molex 501571 U–2013 Reliable Signal Connectors for Industrial Applications
Order Molex 501571 Pico-Clasp™ wire-to-board connector online today to ensure reliable, durable signal connections for your electronic projects. This high-quality 20-circuit, 1.00mm pitch PCB header is designed for green, environmentally friendly applications, offering gold-plated contacts for excellent electrical performance. Its rugged construction supports up to 30 mating cycles, operating efficiently between -40°C and +105°C. Perfect for industrial automation, electronics, and signal wiring, this surface mount connector guarantees secure locking and easy mating, making it an essential component for your reliable connection needs.
Get Molex 501571 today—built for precision and long-lasting durability in signal wiring and electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 5015712007?
You can click on the BUY or RFQ button to purchase 5015712007 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5015712007?
You can download the 5015712007 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5015712007?
MOLEX
