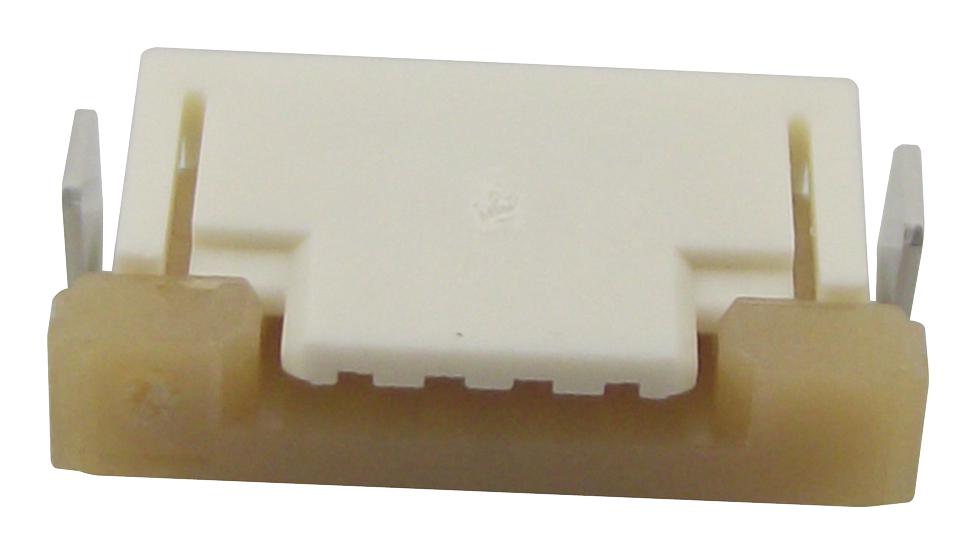

MOLEX 522072433 Easy-On FFC/FPC Connector
The MOLEX 52207-2433 Easy-On FFC/FPC connector is a versatile component for connecting flexible flat cables to printed circuit boards. Designed with a slider actuator and right-angle orientation, this connector offers ease of use and efficient space utilization in electronic assemblies. It is ideal for applications in consumer electronics, industrial equipment, and automotive systems where reliable and compact FFC/FPC connections are required. The connector's tin-silver-bismuth plating ensures excellent solderability and corrosion resistance, contributing to the long-term performance of the connected circuit.
MOLEX 522072433 Easy-On FFC/FPC Connector Specifications:
- overview: FFC-FPC (SMT)
- pitch_mating_interface: 1.00mm
- circuits_loaded: 24
- material_metal: Phosphor Bronze
- material_plating_mating: Tin-Silver-Bismuth
- material_plating_termination: Tin-Silver-Bismuth
- material_resin: Nylon
- mated_height: 2.70mm
- durability_mating_cycles_max: 30
- flammability: 94V-0
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V
- operating_temperature_range: -40° to +85°C
- pcb_tail_length: 2.00mm
- number_of_rows: 1
- orientation: Right Angle
- stackable: No
- halogen_free_status: Not Low-Halogen
- reach_svhc: Not Contained
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
Buy the 52207-2433 MOLEX Easy-On FFC/FPC Connector | myMectronic
Purchase the MOLEX 52207-2433 Easy-On FFC/FPC Connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 522072433?
You can click on the BUY or RFQ button to purchase 522072433 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 522072433?
You can download the 522072433 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 522072433?
MOLEX
