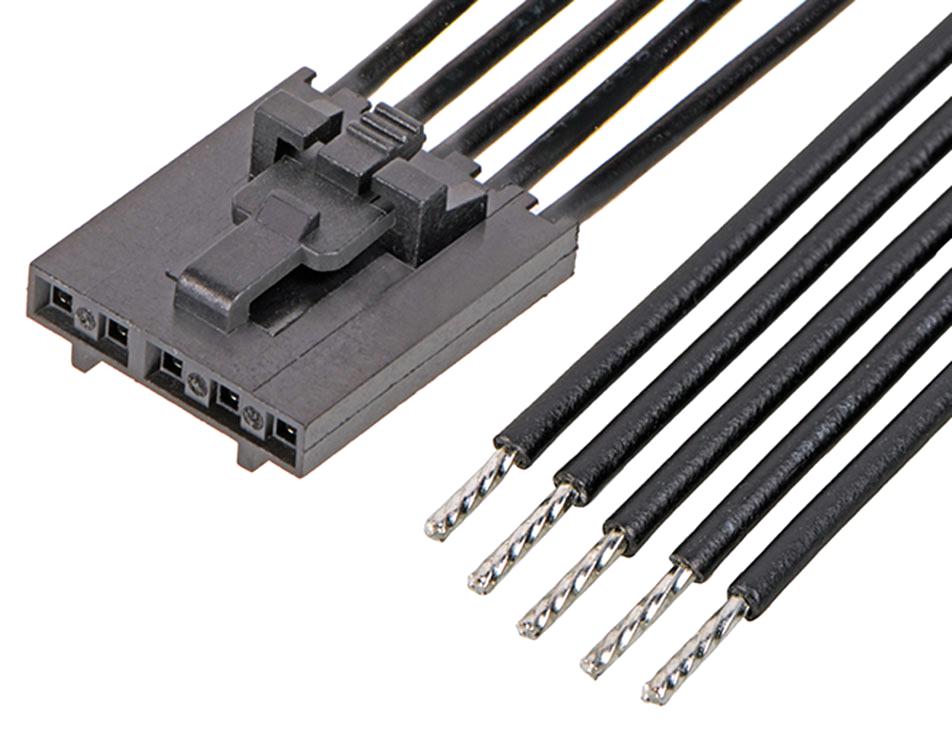

MOLEX 2162711050 Signal Cable Assembly
This off-the-shelf stackable linear positive lock discrete cable assembly supports both prototyping and mass production. It features crimp, FFC, and IDT termination styles with dual contact points for high electrical reliability. The connector has a terminal position assurance lock to prevent disconnection in high-vibration environments, ensuring secure wire-to-wire and wire-to-board connections. Its low-profile, stackable housing is available in vertical or right-angle configurations, suitable for consumer electronics, industrial, automotive, and medical applications. It operates at 600V AC/DC, 3A, and withstands temperatures from -40°C to +105°C for up to 25 mating cycles.
MOLEX 2162711050 Signal Cable Assembly Specifications:
- Series: 216271
- Application: Wire-to-Wire, Wire-to-Board
- Configuration: Single Ended, Connector to Connector
- Cable Length: 50.00mm
- Circuits: 5
- Color: Black
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 2.348 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Temperature Range: -40°C to +105°C
- Certifications: UL Listed, CSA Certified
- RoHS Compliant, Halogen-Free
Buy the Buy Molex Signal Cable Assembly Part Number 2162711050 Online
Purchase the Molex signal cable assembly online to ensure reliable wire-to-wire and wire-to-board connections for your electronics. Designed with dual contact points and a terminal position assurance lock, it provides enhanced electrical reliability and safety in high-vibration settings. Its versatile, stackable low-profile housing allows easy integration in consumer electronics, industrial, automotive, and medical applications. Operating up to 600V and 3A, it withstands temperatures from -40°C to 105°C for up to 25 mating cycles, ensuring durability and performance in demanding conditions.
Buy Molex 2162711050 now and experience unmatched reliability and performance in secure, high-vibration environments.
Frequently Asked Questions
Where can I buy MOLEX 2162711050?
You can click on the BUY or RFQ button to purchase 2162711050 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162711050?
You can download the 2162711050 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162711050?
MOLEX
