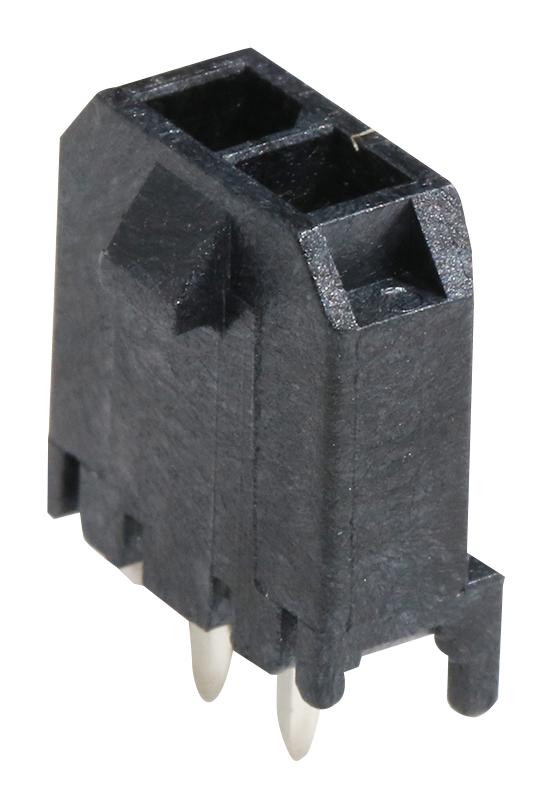

MOLEX 436500229 PCB Connector
The Micro-Fit 3.0 Vertical Header is a compact, high-temperature PCB connector with a 3.00mm pitch, single row, 2 circuits, featuring a polarizing peg, gold plating, and glow-wire capability. Constructed from UL 94V-0 rated thermoplastic, it supports up to 8.5A and 600V, is shrouded and stackable with a standard 3.00mm mating interface. Suitable for power and wire-to-board applications, it offers durability up to 30 mating cycles and complies with RoHS standards. Its design ensures safe, reliable connections for electrical systems requiring high temperature resistance and flame retardance.
MOLEX 436500229 PCB Connector Specifications:
- Pitch: 3.00mm
- Circuits: 2
- Color - Resin: Black
- Flammability: UL 94V-0
- Material - Resin: High Temperature Thermoplastic
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Mated Height: 17.27mm
- Lock to Mating Part: Yes
- Durability (mating cycles max): 30
- Shrouded: Yes
- Stackable: Yes
- Surface Mount Compatible: Yes
- PCB Thickness - Recommended: 1.60mm
- PCB Locator: None
- Termination Interface: Through Hole
- Process Temperature Max.: 260°C
- Max. Cycles at Max. Process Temperature: 30
- RoHS Compliant: Yes
- Glow-Wire Capable: Yes
Buy the Buy Molex Micro-Fit 3.0 Connector Part Number 0436500229 Online
Purchase the Molex Micro-Fit 3.0 Vertical Header online today to enjoy a dependable high-temperature connector with 2 circuits, gold plating, and glow-wire capability. Designed for power and wire-to-board applications, it features a 3.00mm pitch, stackable design, and UL/CSA certifications for safety and durability. With a maximum current of 8.5A and voltage rating of 600V, this connector supports up to 30 mating cycles and operates from -40°C to +105°C. It’s ideal for demanding electrical systems requiring reliable, flame-retardant components.
Order your Molex Series43650 0436500229 high-temperature vertical header today and ensure reliable, safe electrical connections for your power systems.
Frequently Asked Questions
Where can I buy MOLEX 436500229?
You can click on the BUY or RFQ button to purchase 436500229 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 436500229?
You can download the 436500229 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 436500229?
MOLEX
