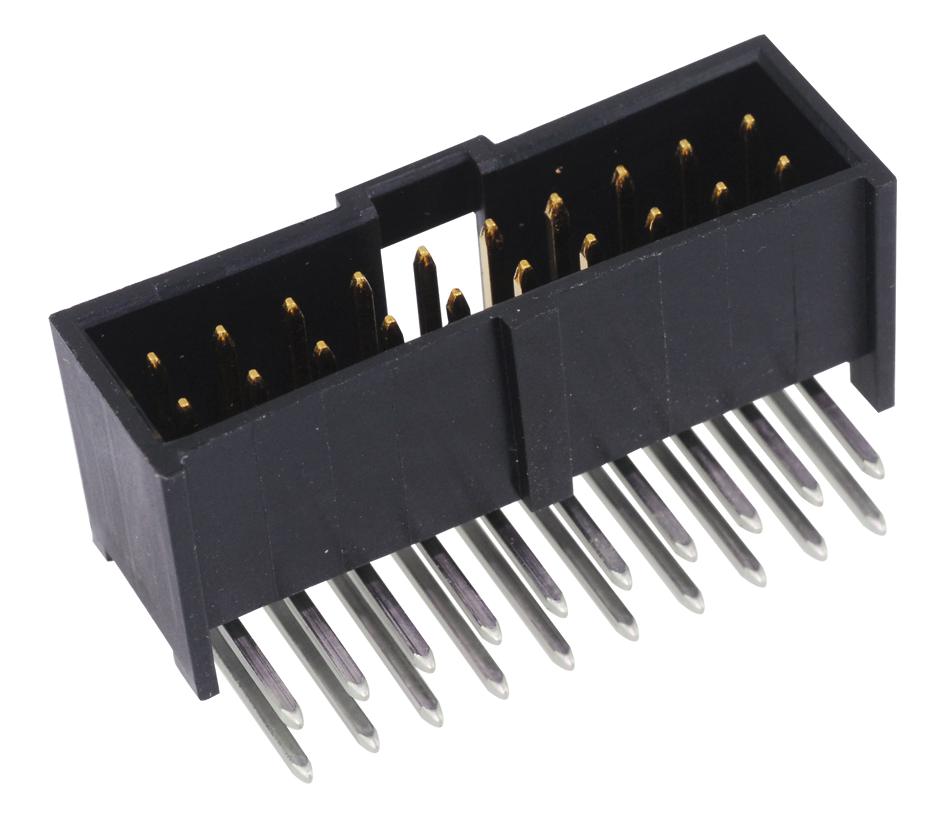

MOLEX 901303120 Signal Header Connector
The C-Grid III Header is a dual row, right-angle, shrouded connector with 20 circuits, designed for wire-to-board applications. It features a fully loaded, black polycarbonate housing, with 3pm tin over nickel plating for corrosion resistance. Suitable for industrial and electronic assembly, it supports up to 3.0A current per contact and a maximum voltage of 350V, ensuring reliable power and signal connections. The connector's durable design allows up to a specified number of mating cycles, suitable for various manufacturing environments requiring high durability and consistent performance.
MOLEX 901303120 Signal Header Connector Specifications:
- Number of Circuits: 20
- Configuration: Dual Row, Right-Angle, Shrouded
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Color - Resin: Black
- Maximum Current per Contact: 3.0A
- Maximum Voltage: 350V AC/DC
- Operating Temperature Range: -55°C to +125°C
- PCB Thickness - Recommended: 1.60mm
- Terminating Interface: Through Hole
- Lock to Mating Part: Yes
- Durability (max mating cycles): Not specified
- Packaging: Tray
- Pitch - Mating Interface: 2.54mm
- Net Weight: 2.718 grams
- Surface Mount Compatible: No
- RoHS Compliant: Yes
- UL and CSA Certified: Yes
Buy the Molex 901303120 – Reliable Signal and Power Connectors for Industrial Applications
Purchase the Molex 901303120 Signal Header Connector online today—designed with a robust dual row, right-angle configuration for dependable power and signal transfer. This connector features 20 circuits, maximum 3A current per contact, and operates at voltages up to 350V, making it ideal for industrial equipment, electronic assemblies, and automation systems. Its durable tin over nickel plating ensures corrosion resistance and longevity. Easy to install with a through-hole termination, it meets international safety standards, delivering high performance in demanding environments.
Get Molex 901303120 today—built for precision and long-lasting durability in industrial and electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 901303120?
You can click on the BUY or RFQ button to purchase 901303120 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901303120?
You can download the 901303120 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901303120?
MOLEX
