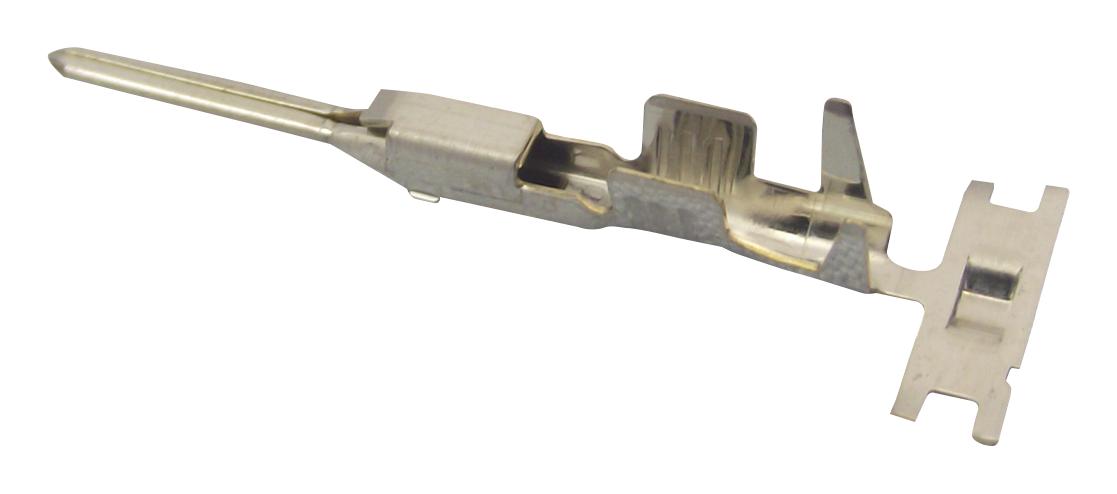

MOLEX 5018280101 CMC Wire-to-Wire Connector
The MOLEX 501828-0101 is a CMC wire-to-wire connector, specifically a male terminal designed for secure and reliable connections in various industrial and automotive applications. It features a brass construction with tin plating on both mating and termination surfaces, ensuring excellent conductivity and corrosion resistance. This connector supports a maximum current of 12.0A and is compatible with wire gauges ranging from 1.20 mm² and insulation diameters of 1.80-1.90mm. It is RoHS compliant and designed for use with specific application tooling for precise crimping and assembly.
MOLEX 5018280101 CMC Wire-to-Wire Connector Specifications:
- Series: 501828
- Application: Wire-to-Wire
- Gender: Male
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 353.130/mg
- Packaging Type: Reel
- Plating min - Mating: 0.889µm
- Plating min - Termination: 0.889µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.80-1.90mm
- Wire Size AWG: N/A
- Wire Size mm²: 1.20
- Current - Maximum per Contact: 12.0A
- Lead-freeProcess Capability: N/A
- EU ELV Compliant: Yes
- EU RoHS: Compliant
- China RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Mates With: 5018203201
- Use With: 501820 Plug Housing
