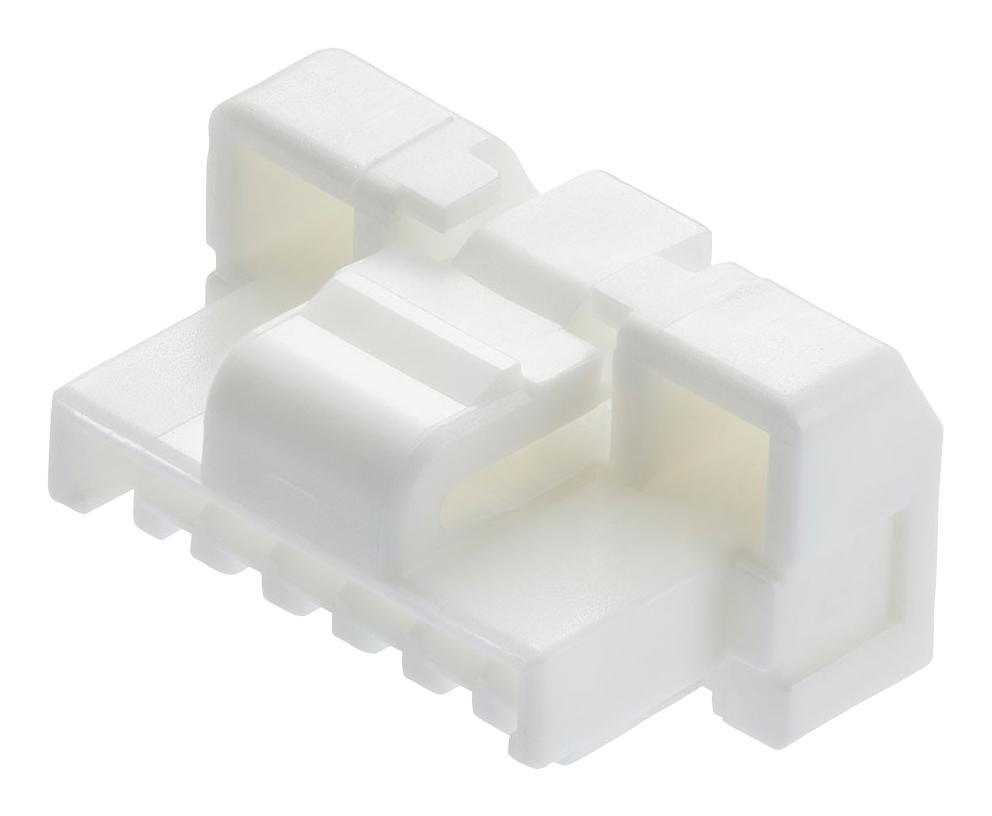

MOLEX 5023801400 Wire-to-Board Connector
The 1.25mm Pitch CLIK-Mate Wire-to-Board Housing is a single-row, positive lock connector with 14 circuits, designed for reliable signal transmission. Made from high-quality polyester resin, it is ideal for applications requiring secure connections in tight spaces. The housing supports a temperature range from -40°C to +105°C, with a maximum current of 1.0A per contact. Its white color and stackable design facilitate easy assembly and maintenance in electronic and electrical projects. Compatible with various PCB receptacles, it ensures secure, lockable connections for electronic devices and control systems.
MOLEX 5023801400 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 1.25mm
- Number of Circuits: 14
- Color - Resin: White
- Material - Resin: Polyester
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 1.0A
- Lock to Mating Part: Yes
- Stackable: Yes
- Gender: Plug
- Physical: Net Weight approximately 337.000 mg
- Packaging Type: Bag
- Mates With: 502382 PCB Receptacle, 502386 PCB Receptacle
- Use With: 502381 Crimp Terminal
Buy the Buy Molex 1.25mm Pitch CLIK-Mate Wire-to-Board Housing Part Number 5023801400 Online
Enhance your electronic assemblies with the Molex 5023801400 wire-to-board connector. Featuring a 1.25mm pitch and 14 circuits, it offers secure, lockable connections. Made from durable polyester resin, it operates efficiently within a temperature range of -40°C to +105°C and supports current up to 1.0A per contact. Its stackable, positive lock design ensures easy installation and maintenance, making it ideal for electronic devices, control systems, and PCB applications. Purchase online for dependable, high-quality connectivity solutions.
Order your Molex Series502380 5023801400 wire-to-board connector today and secure reliable, high-quality electronic connections for your projects.
Frequently Asked Questions
Where can I buy MOLEX 5023801400?
You can click on the BUY or RFQ button to purchase 5023801400 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023801400?
You can download the 5023801400 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023801400?
MOLEX
