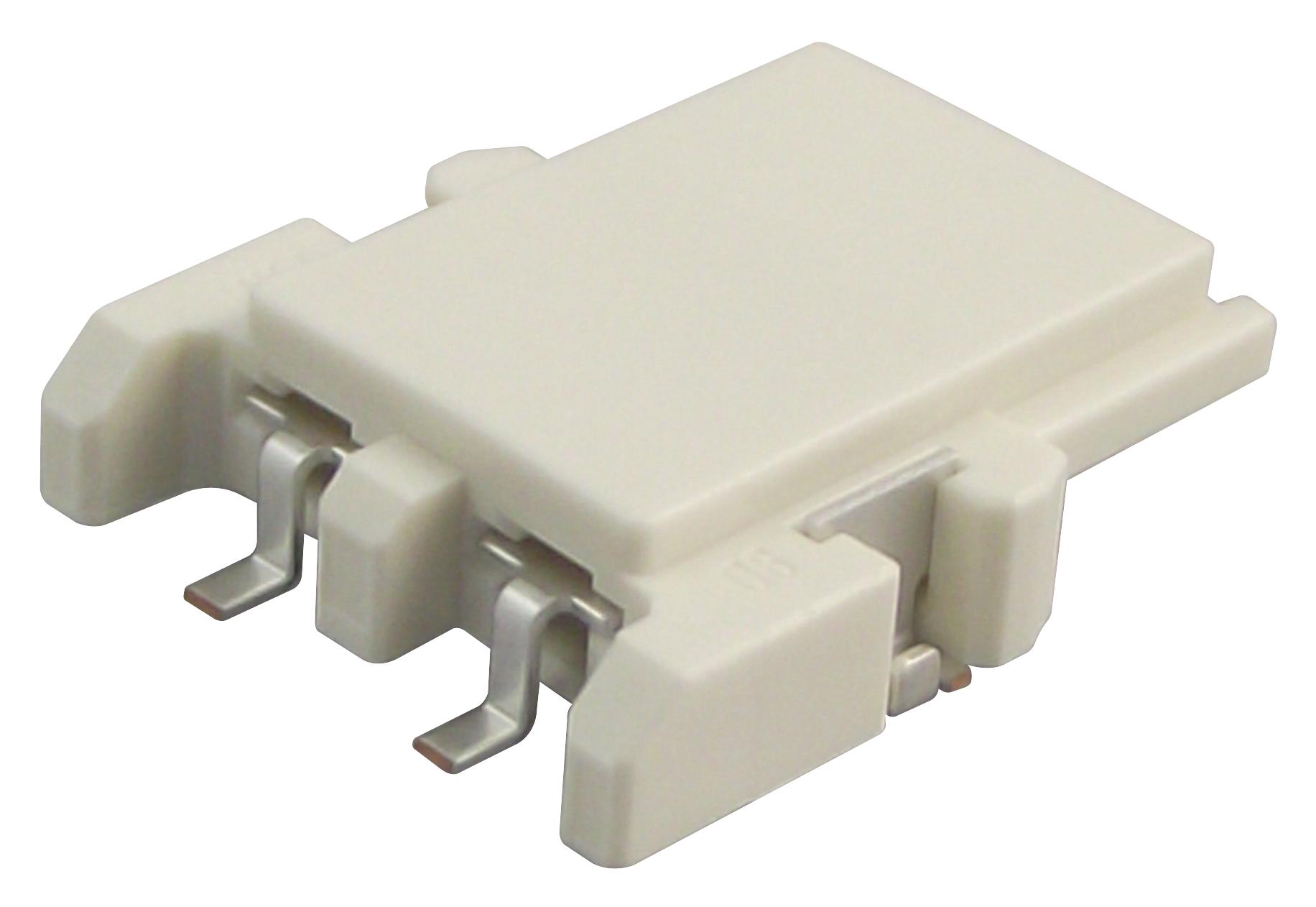

MOLEX 5034690200 Board-to-Board Connector
The Flexi-Mate connector system features a 3.70mm pitch board-to-board plug designed for surface mount applications with a right-angle orientation. It supports 2 circuits with a maximum of 2 loaded circuits, providing reliable electrical connectivity up to 2A and 500V. Made from phosphor bronze with tin plating, it offers durability with a mated height of 3.00mm and a temperature range of -40°C to +85°C. This RoHS-compliant connector is ideal for compact, high-performance electronic assemblies in industrial and consumer equipment.
MOLEX 5034690200 Board-to-Board Connector Specifications:
- Pitch - Mating Interface: 3.70mm
- Circuits (Loaded): 2
- Color - Resin: White
- Durability (mating cycles max): 5
- Flammability: 94V-0
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Mated Height: 3.00mm
- Temperature Range - Operating: -40°C to +85°C
- Current - Maximum per Contact: 2.0A
- Voltage - Maximum: 500V
- Orientation: Right Angle
- Packaging Type: Embossed Tape on Reel
- Surface Mount
- RoHS Compliant
Buy the Molex 5034690200 – Reliable Board-to-Board Connectors for Industrial Applications
Order the Molex 5034690200 board-to-board connector today and ensure reliable, high-performance electrical connections for your electronic projects. This surface mount, right-angle connector supports 2 circuits with a maximum current of 2A and voltage of 500V, making it ideal for compact and durable assemblies. Crafted from phosphor bronze with tin plating, it features a 3.70mm pitch and a mated height of 3.00mm. Suitable for industrial, automation, and electronic equipment, it is RoHS compliant, supporting a wide temperature range from -40°C to +85°C. Buy online now for fast delivery and assured quality.
Buy Molex 5034690200 now and enjoy dependable electrical connections with high durability for industrial and electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 5034690200?
You can click on the BUY or RFQ button to purchase 5034690200 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5034690200?
You can download the 5034690200 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5034690200?
MOLEX
