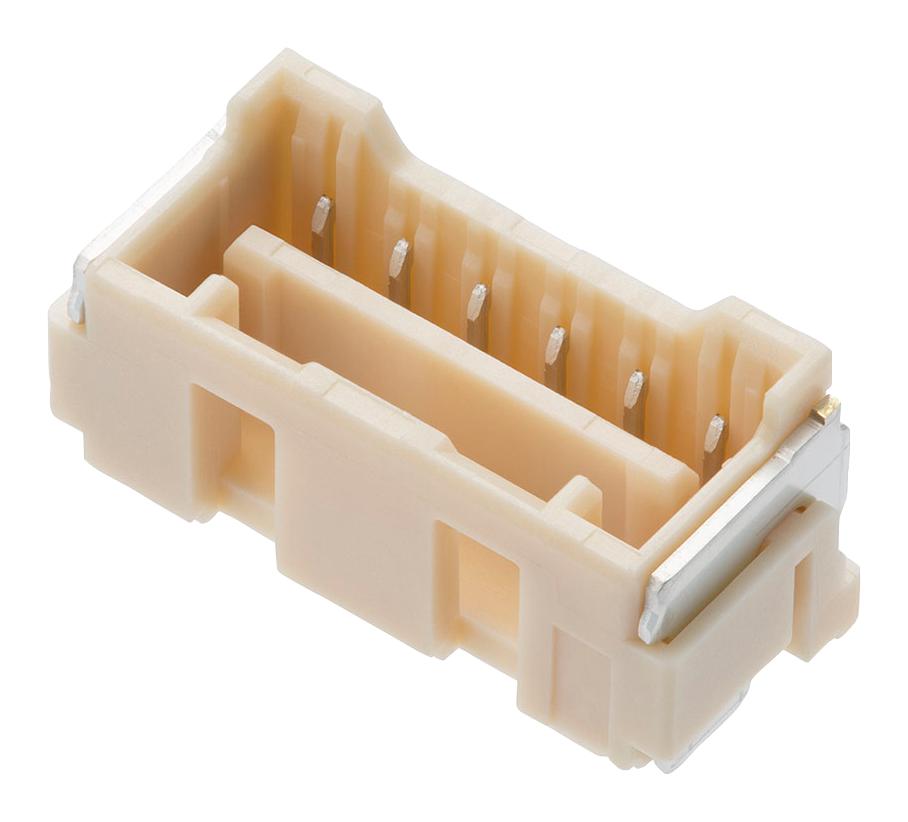

MOLEX 5024430870 Wire-to-Board Connector
The 2.00mm Pitch CLIK-Mate Wire-to-Board Receptacle offers reliable connections for PCB applications. Designed with a single row, vertical orientation, and 8 circuits, it features durable tin-plated contacts and supports up to 3A current per contact at 250V AC/DC. Suitable for high-density electronics, the connector withstands temperatures from -40°C to +105°C and is RoHS and UL certified. It is compatible with the 502439 crimp housing, ensuring secure mating and easy assembly in various industrial and electronic device applications.
MOLEX 5024430870 Wire-to-Board Connector Specifications:
- Pitch: 2.00mm
- Number of Circuits: 8
- Max Current: 3A per contact
- Max Voltage: 250V AC/DC
- Operating Temperature: -40°C to +105°C
- Material - Mating: Tin-plated
- Material - Termination: Tin
- Color - Resin: Natural
- Durability: 30 mating cycles
- Surface Mount Compatible: Yes
- Locking: Yes
- PCB Retention: Yes
- Orientation: Vertical
- Package: Embossed Tape on Reel
- Certification: RoHS, UL
Buy the Molex 5024430870 – Reliable PCB Connectors for Industrial Applications
Purchase the Molex 5024430870 wire-to-board connector online today and ensure reliable electrical connections for your industrial, automation, or electronics projects. Designed with a 2.00mm pitch and 8 circuits, this connector provides secure, high-current performance up to 3A per contact at 250V. Its durable tin-plated contacts and RoHS-compliant materials guarantee long-lasting and eco-friendly use. Easy to assemble with vertical orientation and compatibility with standard crimp housings, making it ideal for high-density electronic applications requiring precise and reliable connectivity.
Get Molex 5024430870 today—built for precision, durability, and high-performance PCB connections in industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 5024430870?
You can click on the BUY or RFQ button to purchase 5024430870 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5024430870?
You can download the 5024430870 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5024430870?
MOLEX
