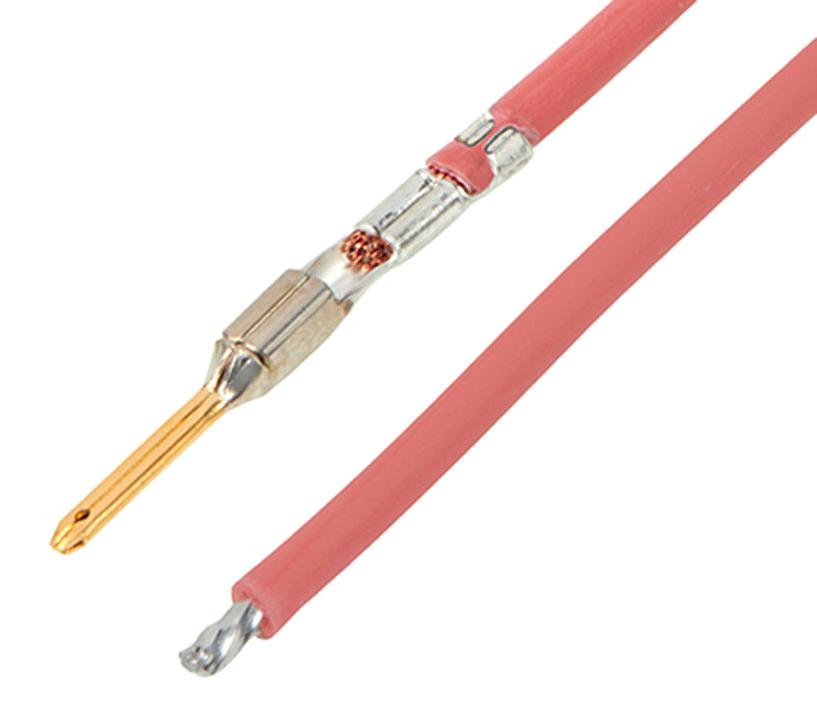

MOLEX 2163032225 MX150 Pre-Crimped Lead
The MOLEX 216303-2225 is an off-the-shelf pre-crimped lead assembly, specifically designed for power, wire-to-board, and wire-to-wire connections. This lead features an MX150 terminal-to-pigtail configuration with gold plating for enhanced conductivity and corrosion resistance. Constructed with a high-performance alloy (HPA) and a red resin color, it offers a robust and reliable solution for various industrial applications. The 450mm length and 14 AWG wire gauge make it suitable for a wide range of power transmission needs.
MOLEX 2163032225 MX150 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: MX150 Terminal-to-Pigtail
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: High Performance Alloy (HPA)
- plating_mating: Gold
- net_weight: 10.750 g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 14
- wire_cable_type: TXL
- current_maximum_per_contact: Contact Molex
- voltage_maximum: 14V DC
- upc: 195842071605
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- china_rohs: Not Contained Per D(2020)9139-DC (19 Jan 2021)
- halogen_free: Low-Halogen
- sales_drawing: 2163031221-000
- use_with_housing: MX150 Dual Row Housing 33482, MX150 Single Row Housing 33481, MX150 Hybrid Housing 33486
