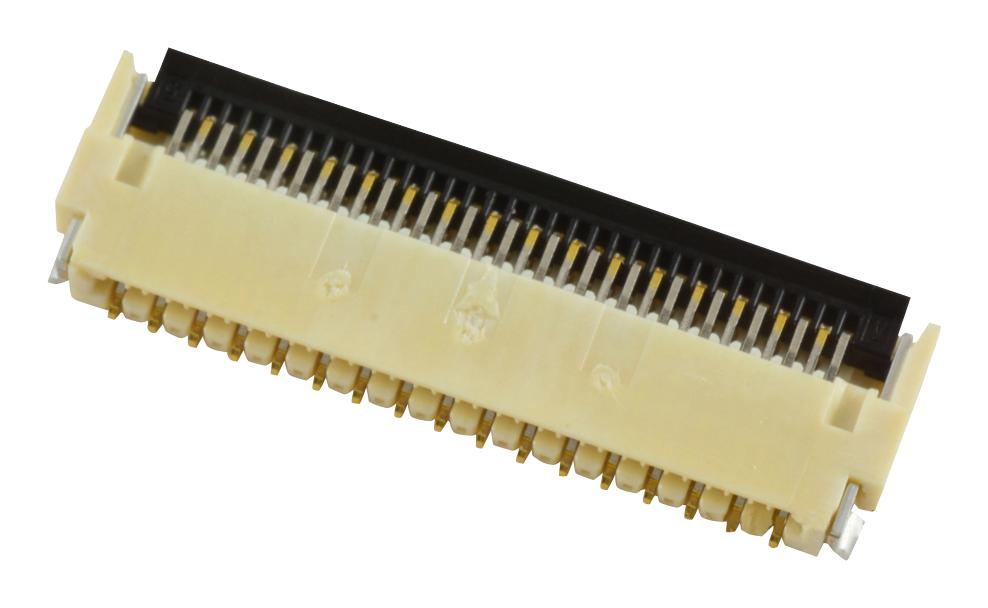

MOLEX 5025983993 Flexible Circuit Connector
This is a 0.30mm pitch easy-on back flip FPC connector designed for surface mount applications with a right-angle orientation. It features dual contact style, 39 circuits, and a mated height of 1.15mm. Made from copper alloy and phosphor bronze with gold and tin plating, it offers a maximum current of 0.2A per contact and a maximum voltage of 50V AC/DC. The connector supports an operating temperature range of -40°C to +105°C, ideal for compact electronic assemblies requiring reliable flexible circuit connections.
MOLEX 5025983993 Flexible Circuit Connector Specifications:
- Pitch - Mating Interface: 0.30mm
- Circuits (Loaded): 39
- Color - Resin: Black, White
- Material - Metal: Copper Alloy, Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold, Tin
- Mated Height: 1.15mm
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 0.2A
- Voltage - Maximum: 50V AC/DC
- Mounting Style: Surface Mount
- Actuator Type: Flip
- Net Weight: 95.873/mg
- Number of Rows: 1
- Orientation: Right Angle
- PCB Mounting: Yes
- Packaging Type: Embossed Tape on Reel
- Color - Resin: Black, White
Buy the Molex Series FFC-FPC: 5025983993
Purchase the Molex flexible circuit connector online today and ensure secure, reliable connections in your electronic assemblies. Designed for high-density applications, it features a compact 0.30mm pitch, dual contact style, and a right-angle orientation for space-saving designs. The connector's gold and tin plating provide excellent conductivity and corrosion resistance, while its surface-mount design simplifies assembly. With a temperature range of -40°C to +105°C and a maximum current of 0.2A per contact, it is ideal for modern electronic devices requiring durable, flexible interconnections.
Buy Molex 5025983993 now and experience unmatched reliability and performance for high-density flexible circuit connections.
Frequently Asked Questions
Where can I buy MOLEX 5025983993?
You can click on the BUY or RFQ button to purchase 5025983993 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5025983993?
You can download the 5025983993 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5025983993?
MOLEX
