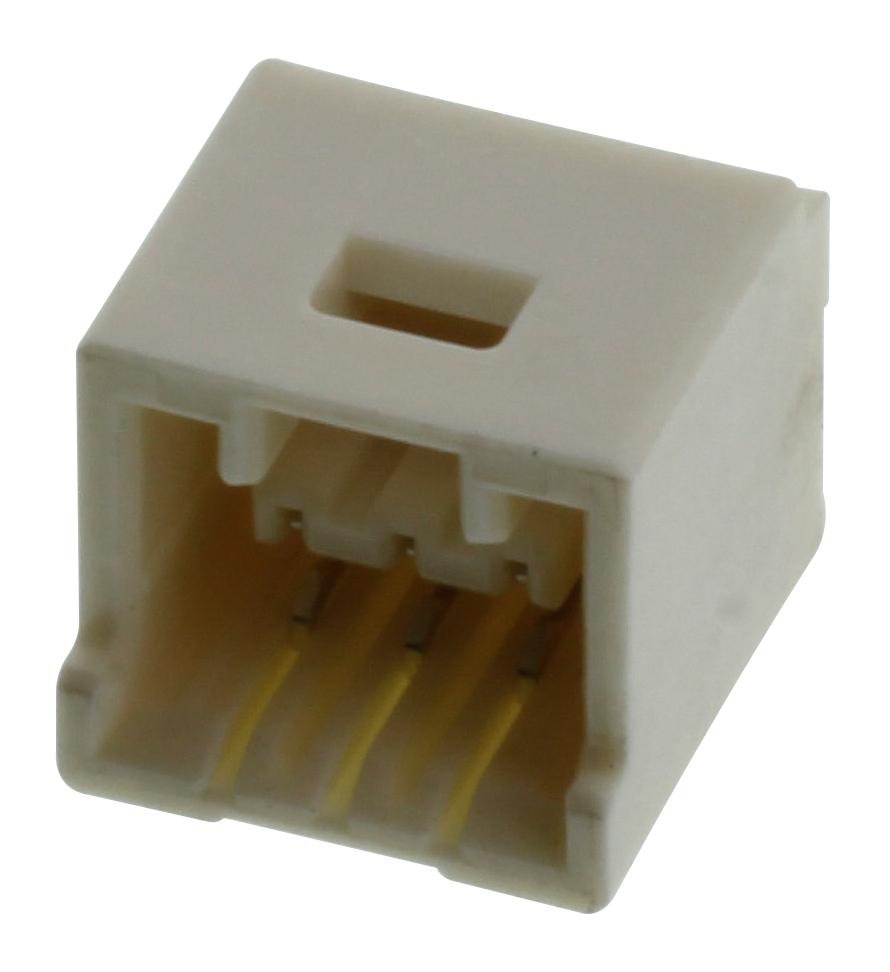

MOLEX 5031590300 Wire-to-Board Receptacle
The 1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle is designed for reliable connections with a single row, through-hole, vertical orientation, and tin-plated contacts. Suitable for various applications, it features a durable design capable of up to 30 mating cycles, making it ideal for PCB assembly and wire-to-board connections. This connector accommodates three circuits with a pitch of 1.50mm, and includes features like PCB retention, polarity, and guide pins for secure mating. Its temperature range extends from -40°C to +105°C, ensuring performance in diverse environments.
MOLEX 5031590300 Wire-to-Board Receptacle Specifications:
- Pitch - Mating Interface: 1.50mm
- Number of Circuits: 3
- Maximum Circuits: 3
- Color - Resin: Beige
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Durability (mating cycles max): 30
- Operating Temperature Range: -40°C to +105°C
- Terminations: Through Hole
- Current - Maximum per Contact: 2.0A
- Voltage - Maximum: 100V
- PCB Thickness - Recommended: Not specified, suitable for standard PCB thickness
- Orientation: Vertical
- PCB Retention: Yes
- Guide to Mating Part: Yes
- Polarized to Mating Part: Yes
- Stackable: No
- Packaging Type: Tray
Buy the Buy Molex CLIK-Mate Wire-to-Board Part Number 5031590300 Online
Purchase the Molex CLIK-Mate Wire-to-Board Receptacle 5031590300 online today and enjoy a highly reliable, easy-to-mate connector designed for durable PCB and wire connections. This 1.50mm pitch connector supports three circuits and features through-hole, vertical mounting for versatile assembly. With a temperature range from -40°C to +105°C, it withstands harsh environments. The connector's tin plating ensures excellent corrosion resistance, while its design allows for up to 30 mating cycles, making it ideal for rugged electronic applications requiring stable, secure, and long-lasting connections.
Buy Molex 5031590300 now and experience unmatched reliability and high-performance wire-to-board connections suitable for demanding PCB applications.
