MOLEX 5031590600 Wire-to-Board Receptacle
The 5031590600 is a 1.50mm pitch CLIK-Mate wire-to-board PCB receptacle featuring a single row, through-hole, and vertical orientation, with tin plating and a peg for secure connection. Designed for 6 circuits, it is made of durable copper alloy, supports up to 30 mating cycles, and is RoHS compliant. Suitable for applications requiring reliable signal connections, this receptacle operates between -40°C to +105°C, with a maximum current of 2A and voltage of 100V, facilitating robust electronic assembly in compact spaces.
MOLEX 5031590600 Wire-to-Board Receptacle Specifications:
- Pitch: 1.50mm
- Circuits: 6
- Maximum Circuits: 6
- Color - Resin: Beige
- Durability (mating cycles max): 30
- Glow-Wire Capable: No
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 561.201 mg
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- Recommended PCB Thickness: 1.37mm, 1.80mm
- Packaging Type: Tray
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Style - Through Hole
- Current - Maximum per Contact: 2A
- Voltage - Maximum: 100V
- RoHS Compliance: Yes
- Halogen-Free: No
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Status: Active

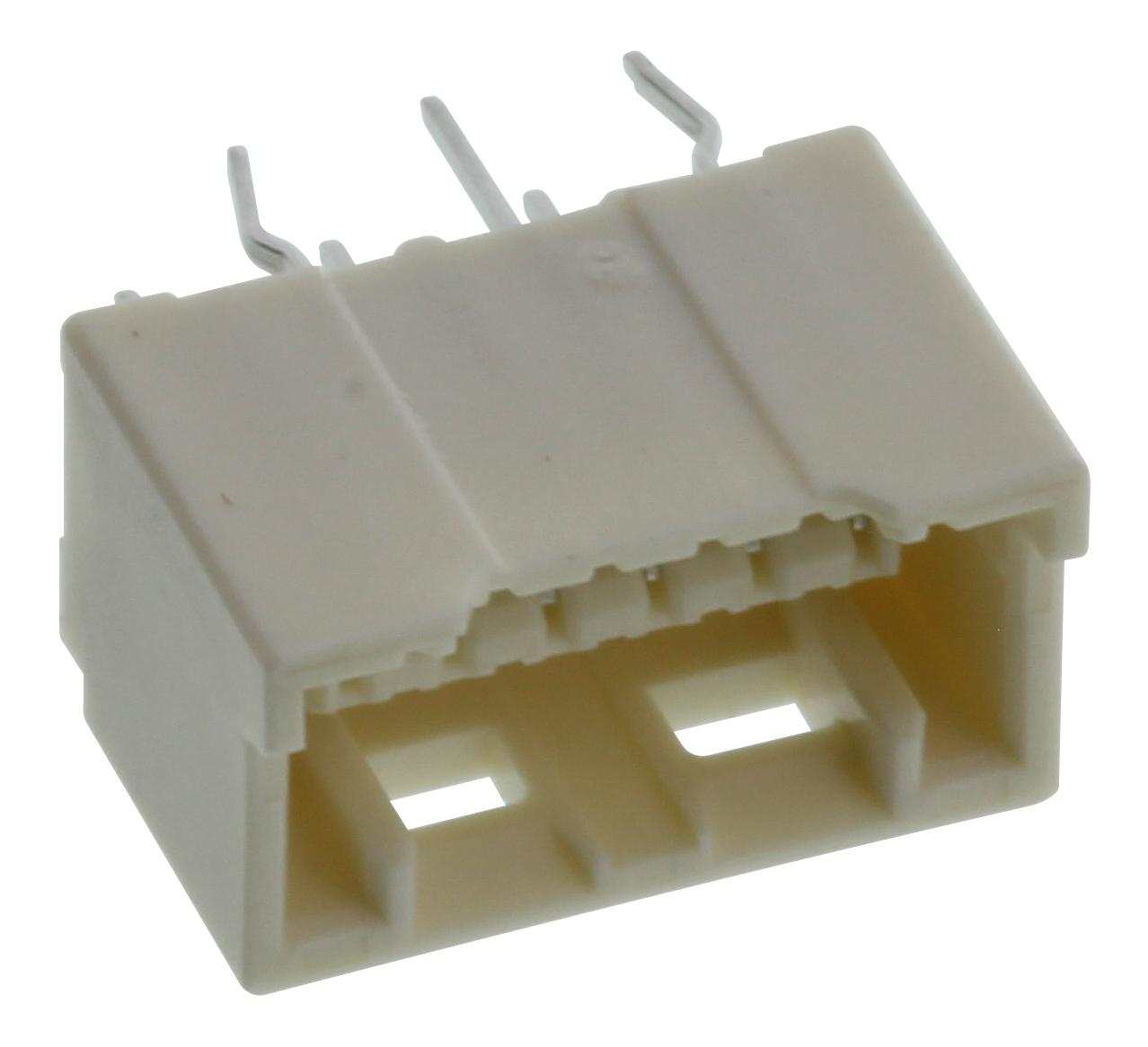

Buy the Molex Series CLIK-Mate 1.50mm PCB Receptacle: 5031590600
Discover the Molex Series CLIK-Mate wire-to-board receptacle, designed for secure and reliable connections in electronic assemblies. Featuring a 1.50mm pitch, six circuits, and a durable tin-plated copper alloy construction, this vertical through-hole connector ensures high performance across a temperature range of -40°C to +105°C. It supports up to 30 mating cycles, making it ideal for demanding applications. RoHS compliant and easy to install, order online today to enhance your electronics with dependable, high-quality connection solutions.
Order your Molex Series CLIK-Mate 1.50mm PCB Receptacle today and give your electronic projects the reliable, secure connection they need for lasting performance.
Frequently Asked Questions
Where can I buy MOLEX 5031590600?
You can click on the BUY or RFQ button to purchase 5031590600 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5031590600?
You can download the 5031590600 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5031590600?
MOLEX
