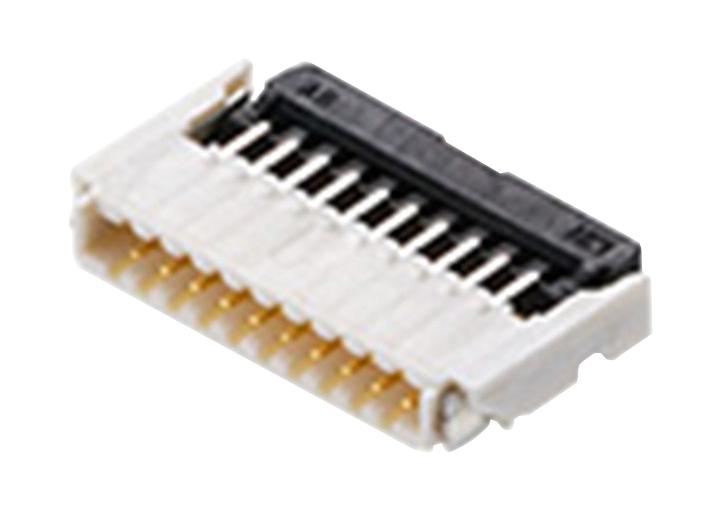

MOLEX 5034802000 FFC-FPC Connector
The Easy-On FFC/FPC Connector with 0.50mm pitch from the FBH1 series offers reliable, high-density connections for flexible flat cables and flexible printed circuits. Designed for surface mounting, this right-angle dual contact connector features a 1.00mm mated height and gold-plated contacts for excellent electrical performance and corrosion resistance. Suitable for applications requiring durability up to 20 mating cycles, it is made of flame-retardant liquid crystal polymer with phosphor bronze contacts. RoHS and UL compliant, it ensures safe, environmentally friendly connectivity in electronics assemblies.
MOLEX 5034802000 FFC-FPC Connector Specifications:
- Pitch - Mating Interface: 0.50mm
- Circuits (Loaded): 22
- Color - Resin: Natural (White)
- Actuator Type: Flip
- Durability (mating cycles max): 20
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Gold over Nickel
- Material - Resin: Liquid Crystal Polymer
- Mated Height: 1.00mm
- Orientation: Right Angle
- PCB Mounting: Surface Mount
- Packaging Type: Embossed Tape on Reel
- Temperature Range - Operating: -40°C to +85°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC/DC
- Flammability: 94V-0
- Compliance: RoHS, UL
- Maximum Reflow Process Temperature: 260°C for 10 seconds
Buy the Molex Series FBH1 FFC-FPC Connector: 5034802000
Secure your flexible flat cable and printed circuit connections with the Molex Series FBH1 FFC-FPC Connector. Designed for surface mounting with a 0.50mm pitch, it features 22 circuits, gold-plated contacts, and a durable construction rated for 20 mating cycles. Made from flame-retardant liquid crystal polymer, this right-angle dual contact connector ensures excellent electrical performance, environmental compliance, and reliable operation across a wide temperature range. Ideal for compact electronic assemblies requiring high-density, durable connectivity solutions.
Order your Molex Series FBH1 FFC-FPC Connector 5034802000 today and ensure reliable high-density flexible cable connections for your projects.
