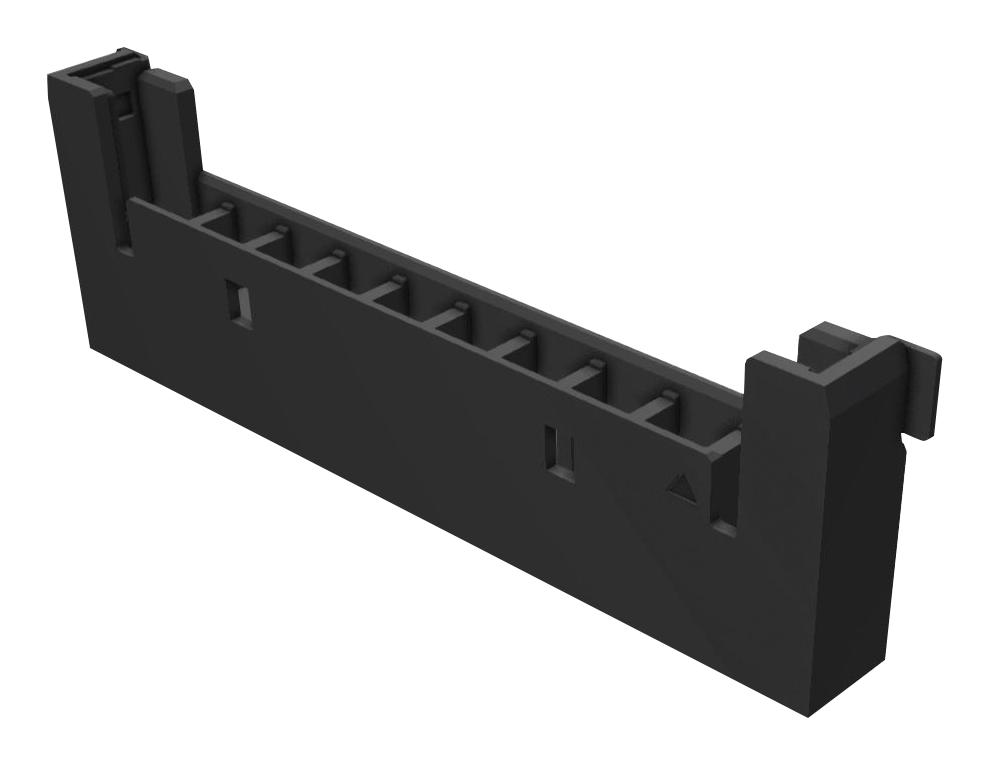

MOLEX 5040500991 Pico-Lock Connector System
The Pico-Lock connector system features a 1.50mm pitch, dual row, right-angle surface-mount wire-to-board header designed for robust and reliable connections. Made of high-temperature thermoplastic with gold over nickel plating on copper alloy contacts, it supports up to 9 circuits with a maximum current of 3.5A per contact and a voltage rating of 150V AC/DC. Suitable for applications requiring durability up to 30 mating cycles, the connector is RoHS, ELV, and Halogen-Free compliant, ensuring environmental safety and high performance in electronics and industrial settings.
MOLEX 5040500991 Pico-Lock Connector System Specifications:
- Pitch: 1.50mm
- Number of Circuits: 9
- Maximum Circuits: 9
- Current per Contact: 3.5A
- Voltage Rating: 150V AC/DC
- Contact Material: Copper Alloy
- Plating: Gold over Nickel
- Housing Material: High-Temperature Thermoplastic
- Temperature Range: -40°C to +105°C
- Surface Mount: Yes
- Durability: Up to 30 mating cycles
- RoHS, ELV, Halogen-Free, REACH SVHC Compliant
- Packaged on Embossed Tape on Reel
- Mated Height: 2.00mm
- Orientation: Right Angle
- Color: Black
- Application: Wire-to-Board connections for electronics
Buy the Molex Series Pico-Lock Wire-to-Board Connector: 5040500991
Purchase the Molex Pico-Lock Connector System online today for secure, reliable, and high-performance wire-to-board connections. Designed with a 1.50mm pitch, it supports nine circuits and features gold-plated contacts for excellent conductivity. Made from high-temperature thermoplastic, it withstands extreme temperatures from -40°C to 105°C. This connector ensures durability up to 30 mating cycles while complying with RoHS, ELV, and halogen-free standards, making it ideal for electronics requiring safe, eco-friendly, and robust connectivity solutions.
Get Molex Pico-Lock 5040500991 today—built for precision and long-lasting durability in high-reliability electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 5040500991?
You can click on the BUY or RFQ button to purchase 5040500991 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5040500991?
You can download the 5040500991 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5040500991?
MOLEX
