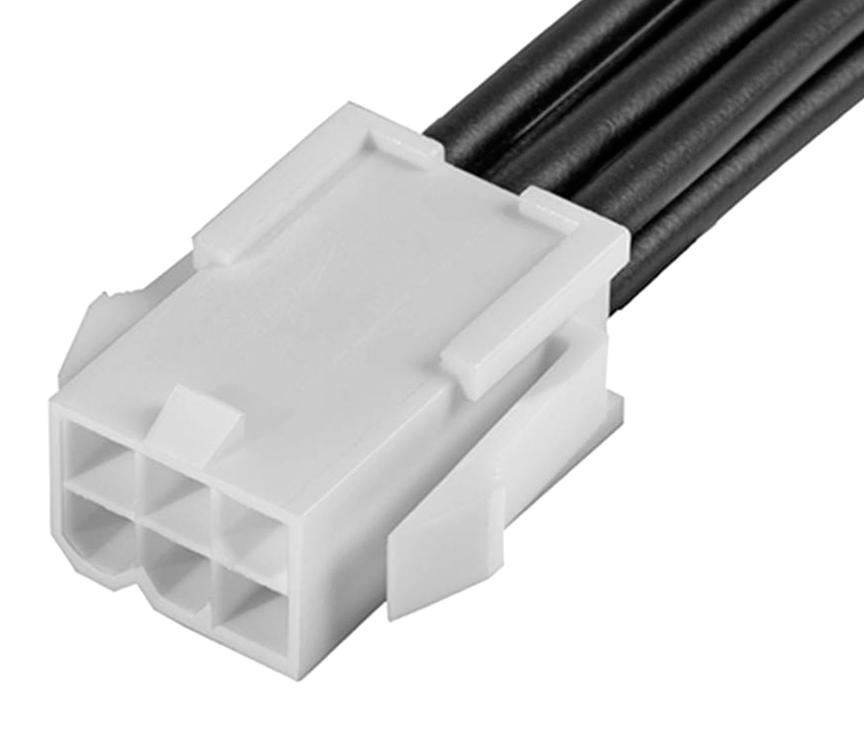

MOLEX 2153252061 Mini-Fit Jr. Cable Assembly
The MOLEX 215325-2061 is a Mini-Fit Jr. female-to-female off-the-shelf cable assembly designed for power, wire-to-board, and wire-to-wire applications. It boasts a dual-row design, a 150mm cable length, and is suitable for applications requiring robust and reliable power transmission. The gold plating on the mating side and tin plating on the termination side contribute to excellent conductivity and durability. This assembly is ideal for various industrial and commercial applications where secure and efficient power connections are essential.
MOLEX 2153252061 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr.
- cable_length: 150.00mm
- circuits_loaded: 6
- color_resin: Black
- gender: Female-Female
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 26.126
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- upc: 193264589852
- material_info: Please check WWW.MOLEX.COM for latest part information
