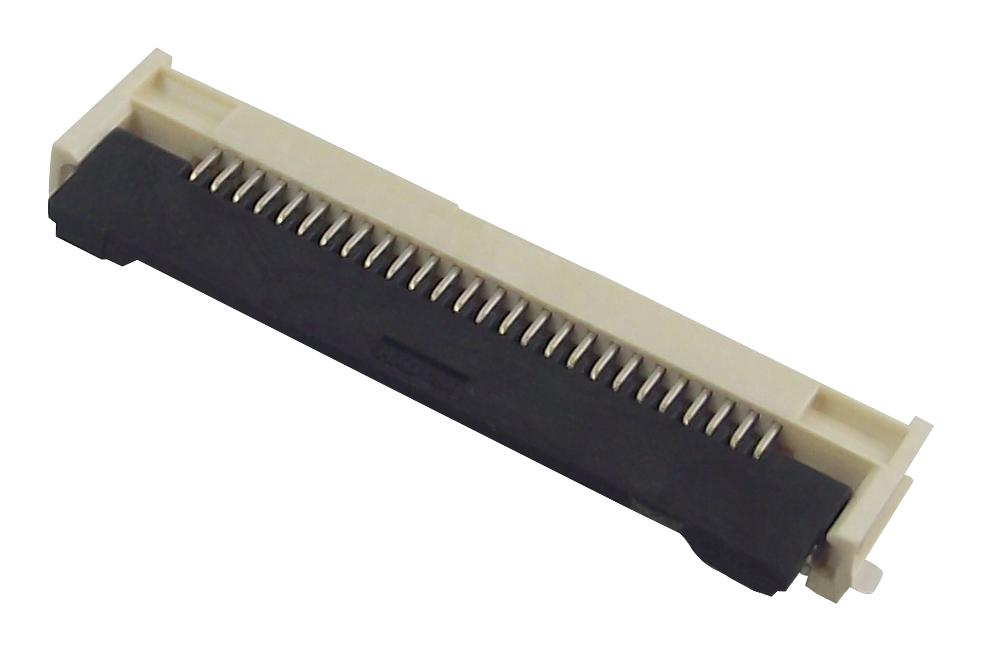

MOLEX 5051102691 FFC/FPC Connector
The Molex Easy-On FFC-FPC connector is a surface mount, right-angle, ZIF connector designed for flexible printed circuit applications. It features a 0.50mm pitch, 26 circuits, and a height of 1.90mm. Constructed with phosphor bronze contacts plated with gold over nickel, it ensures reliable electrical connections with a maximum current of 0.5A per contact. The connector is durable with up to 25 mating cycles, operating within -40°C to +105°C, and is RoHS compliant. It is ideal for compact electronic devices requiring secure, low-profile connections, offering easy assembly and high reliability.
MOLEX 5051102691 FFC/FPC Connector Specifications:
- Material - Contact: Phosphor Bronze with Gold over Nickel plating
- Material - Resin: Liquid Crystal Polymer
- Color - Resin: Beige
- Number of Circuits (Maximum): 26
- Contact Position: Bottom
- Entry Angle: 90°
- Mated Height: 1.90mm
- Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC/DC
- Pitch - Mating Interface: 0.50mm
- Plating Min - Mating: 0.051μm
- Plating Min - Termination: 0.051μm
- Physical: Right angle, Surface Mount, ZIF, 25 mating cycles
- Packaging: Embossed tape on reel
Buy the Molex 5051102691 – Reliable FFC/FPC Connector for Industrial Applications
Upgrade your electronic assembly with the Molex Easy-On FFC-FPC connector featuring a 0.50mm pitch and 26 circuits. Its surface mount, right-angle design with ZIF actuation ensures secure, low-profile connections for compact devices. Made with durable phosphor bronze contacts plated in gold over nickel, it offers excellent contact reliability with a maximum current of 0.5A per contact and a voltage rating of 50V. Suitable for applications requiring high durability, RoHS compliance, and operation within -40°C to +105°C, this connector simplifies assembly while providing consistent electrical performance.
Order your Molex Series505110 5051102691 today and give your projects the dependable quality they deserve with high-reliability FFC/FPC connections.
Frequently Asked Questions
Where can I buy MOLEX 5051102691?
You can click on the BUY or RFQ button to purchase 5051102691 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5051102691?
You can download the 5051102691 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5051102691?
MOLEX
