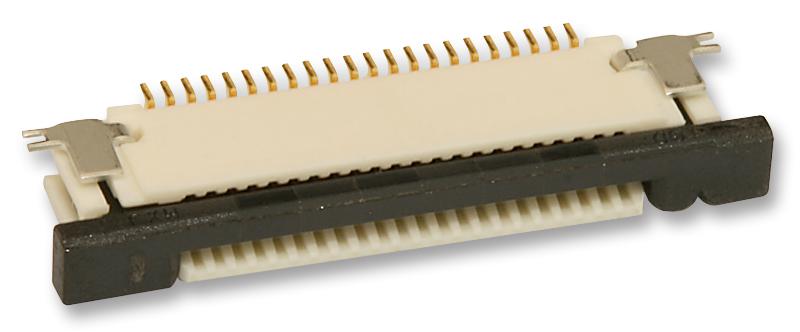

MOLEX 524352271 FFC FPC Connector
The Easy-On FFC-FPC Connector series offers a reliable and efficient solution for flexible flat cable applications with a 0.50mm pitch, right-angle orientation, and gold-plated contacts. Designed for easy SMT installation, this connector features 22 circuits, a 2.00mm height, and a durable phosphor bronze contact material, ensuring high performance and longevity. Its robust construction includes a nylon resin body, RoHS compliance, and UL certification, making it ideal for space-constrained, high-reliability electronic assemblies in industrial, consumer, and communication devices.
MOLEX 524352271 FFC FPC Connector Specifications:
- Series: 52435
- Pitch - Mating Interface: 0.50mm
- Number of Circuits: 22
- Height: 2.00mm
- Contact Material: Phosphor Bronze
- Plating - Contact: Gold
- Material - Body: Nylon
- Durability (mating cycles): 20
- Operating Temperature Range: -40°C to +85°C
- Maximum Current per Contact: 0.5A
- Voltage Rating: 50V AC/DC
- Orientation: Right Angle
- Mounting Type: Surface Mount
- Packaging: Embossed Tape on Reel
- RoHS Compliant: Yes
- UL Certification: E29179
- Flammability: 94V-0
- Wire Type: FFC/FPC
Buy the Molex 0524352271 – Reliable FFC-FPC Connector for Industrial Applications
Experience reliable and efficient connections with the Molex FFC FPC Connector, featuring 22 circuits, a 0.50mm pitch, and gold-plated contacts for optimal conductivity. Its right-angle, surface-mount design simplifies installation in space-constrained devices. Made from durable nylon with phosphor bronze contacts, this high-quality connector is compatible with FFC and FPC cables, providing excellent performance over multiple mating cycles. Ideal for electronics requiring compact, high-reliability connectors in industrial, consumer, and communication applications, ensuring long-lasting and secure connections.
Get Molex 0524352271 today—built for high-density flexible connector solutions with long-lasting durability.
