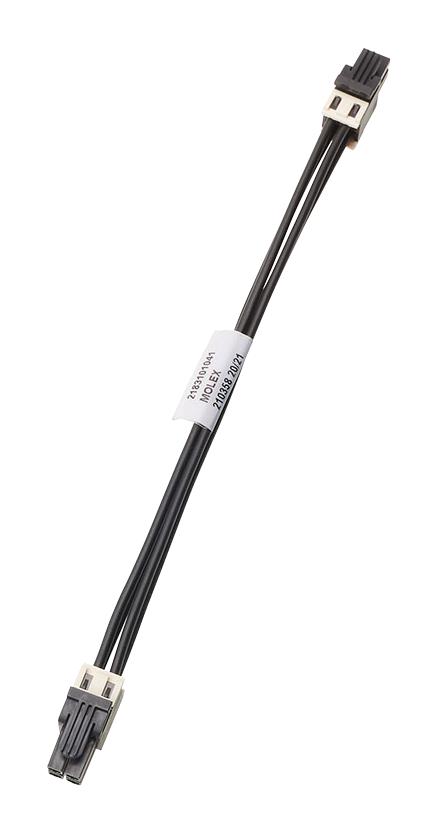

MOLEX 2183101041 Power Connector Assembly
The off-the-shelf Mini-Fit Sigma dual-row cable assembly provides reliable electrical connections across various industries, including automotive, industrial, and medical fields. Featuring tin-plated contacts and a durable nylon housing, it supports up to 11.5A current and 600VAC/DC voltage, with glow wire capability for safety compliance. The connector includes positive locking latches and polarized geometry to prevent mismating, ensuring secure connections. Rated for at least 30 mating cycles, it accommodates 16AWG wires, operates between -20°C and +105°C, and is UL and CSA certified for safety and durability.
MOLEX 2183101041 Power Connector Assembly Specifications:
- Connector Type: Dual-row, cable assembly with locking latches
- Pitch: 4.20mm
- Number of Circuits: 4
- Contact Material: Brass
- Contact Plating: Tin
- Housing Material: Nylon
- Cable Length: 150.00mm
- Maximum Current: 11.5A
- Maximum Voltage: 600VAC/DC
- Wire Size: 16AWG
- Operating Temperature Range: -20°C to +105°C
- Mating Cycles: 30
- RoHS, UL 11028 Certified, Glow wire rated
- Locking Mechanism: Positive latch with polarized mating
- Applicable for automotive, industrial, medical, telecommunications
Buy the Molex 2183101041 – Reliable Power Connector for Industrial Applications
Enhance your industrial or medical applications with the Molex Power Connector Assembly. Designed for durability and safety, it features a nylon housing, positive locking features, and tin-plated contacts. With a current rating of 11.5A and supporting 600VAC/DC, this connector offers secure, reliable connections for wire sizes up to 16AWG. Suitable for various environments, it meets UL and CSA standards, operates from -20°C to +105°C, and ensures safety through glow wire resistance. Get yours online today for dependable power solutions.
Buy Molex 2183101041 now and experience unmatched reliability and performance in power connectivity with secure locking and high current capacity.
