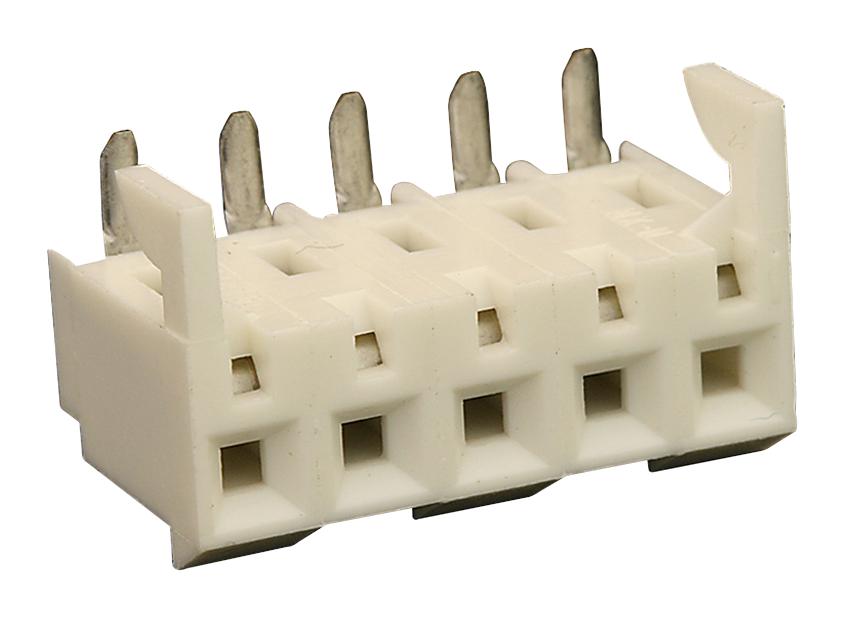

MOLEX 09483025 KK 396 PC Board Connector
The MOLEX 09-48-3025 is a KK 396 PC Board Connector, part of the 41815 series, designed for board-to-board applications. This right-angle connector features a polyester resin body with gold selective plating on the mating interface and tin plating on the termination interface. It supports 2 circuits and is suitable for applications requiring a compact and reliable connection. The connector is RoHS compliant and offers good electrical performance with a maximum current rating of 5.0A and a maximum voltage of 250V. It is ideal for use in various electronic devices and systems where secure and efficient board-to-board connectivity is required.
MOLEX 09483025 KK 396 PC Board Connector Specifications:
- overview: KK Interconnect System
- description: KK 396 PC Board Connector, Right Angle, Polyester Connector, Gold (Au) Selective, 2 Circuits
- application: Board-to-Board, Power
- upc: 800754221115
- circuits_loaded: 2 Circuits
- circuits_maximum: 2
- color_resin: Natural
- flammability: 94V-0
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_plating_mating: Gold
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight_g: 0.705
- number_of_rows: 1
- orientation: Right Angle
- pc_tail_length_mm: 3.68
- pcb_locator: No
- pcb_retention: Yes
- packaging_type: Tray
- pitch_mating_interface_mm: 3.96
- plating_min_mating_um: 0.381
- plating_min_termination_um: 2.540
- polarized_to_pcb: Yes
- temperature_range_operating: See Product Specification
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 5.0
- voltage_maximum_v: 250
- duration_at_max_process_temperature_seconds: 005
- lead_free_process_capability: WAVE
- max_cycles_at_max_process_temperature: 001
- process_temperature_max_c: 235
- engineering_number: A-41815-0425
- mates_with: ['KK 396 Header 41771', 'KK 396 Header 41772', 'KK 396 Header 41791', 'KK 396 Header 41792', 'KK 396 Header 42491', 'KK 396 Header 42492', 'KK 396 Header 42891', 'KK 396 Header 41661', 'KK 396 Header 41662', 'KK 396 Header 41671', 'KK 396 Header 41672', 'KK 396 Header 41681']
