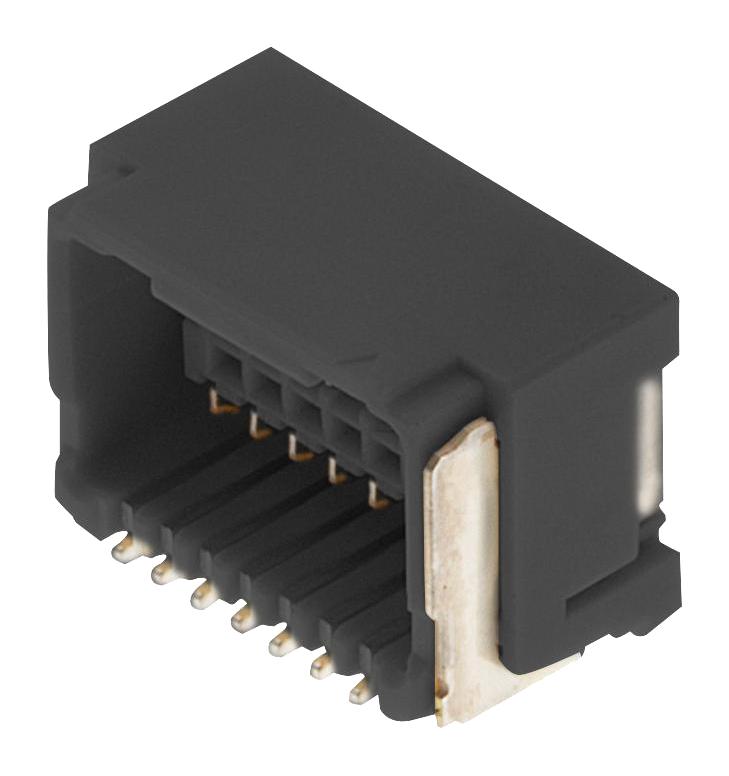

MOLEX 5054480871 Micro-Lock Plus Connector
The Micro-Lock Plus wire-to-board connector system by Molex features a 1.25mm pitch dual-row, right-angle surface mount PCB header with tin-bismuth plating for reliable electrical connections. Designed for signal applications, it supports up to 8 circuits with a maximum current of 1.5A per contact and voltage rating up to 50V. The connector is durable with up to 30 mating cycles, made from polyamide resin, and includes PCB retention and polarization features for secure assembly. Suitable for a wide temperature range of -40°C to +105°C, it ensures robust, space-efficient connections for electronic devices.
MOLEX 5054480871 Micro-Lock Plus Connector Specifications:
- Pitch: 1.25mm
- Number of Circuits: 8
- Maximum Mating Cycles: 30
- Color: Black
- Material - Metal: Brass
- Plating: Tin-Bismuth
- Resin: Polyamide
- Orientation: Right Angle
- Terminations: Surface Mount
- Operating Temperature Range: -40°C to +105°C
- Current per Contact: 1.5A
- Voltage Rating: 50V AC/DC
- PCB Retention: Yes
- Polarized to Mating Part: Yes
- Surface Mount Compatible: Yes
- Durability: Supports up to 30 mating cycles
Buy the Molex Series 505448 Micro-Lock Plus PCB Header: 5054480871
Buy the Molex Micro-Lock Plus connector online today and experience dependable, space-saving electrical connections. With a 1.25mm pitch, dual-row design, and high durability, it is ideal for signal applications requiring secure mating and reliable performance. This surface mount PCB header supports up to 8 circuits and withstands up to 30 mating cycles, with a temperature range from -40°C to +105°C. Order now to enhance your electronic assemblies with this robust, versatile connector that simplifies installation and ensures long-term reliability.
Order your Molex Series 505448 Micro-Lock Plus PCB header today and ensure reliable, space-efficient connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 5054480871?
You can click on the BUY or RFQ button to purchase 5054480871 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5054480871?
You can download the 5054480871 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5054480871?
MOLEX
