MOLEX 1210640900 DIN Valve Connector

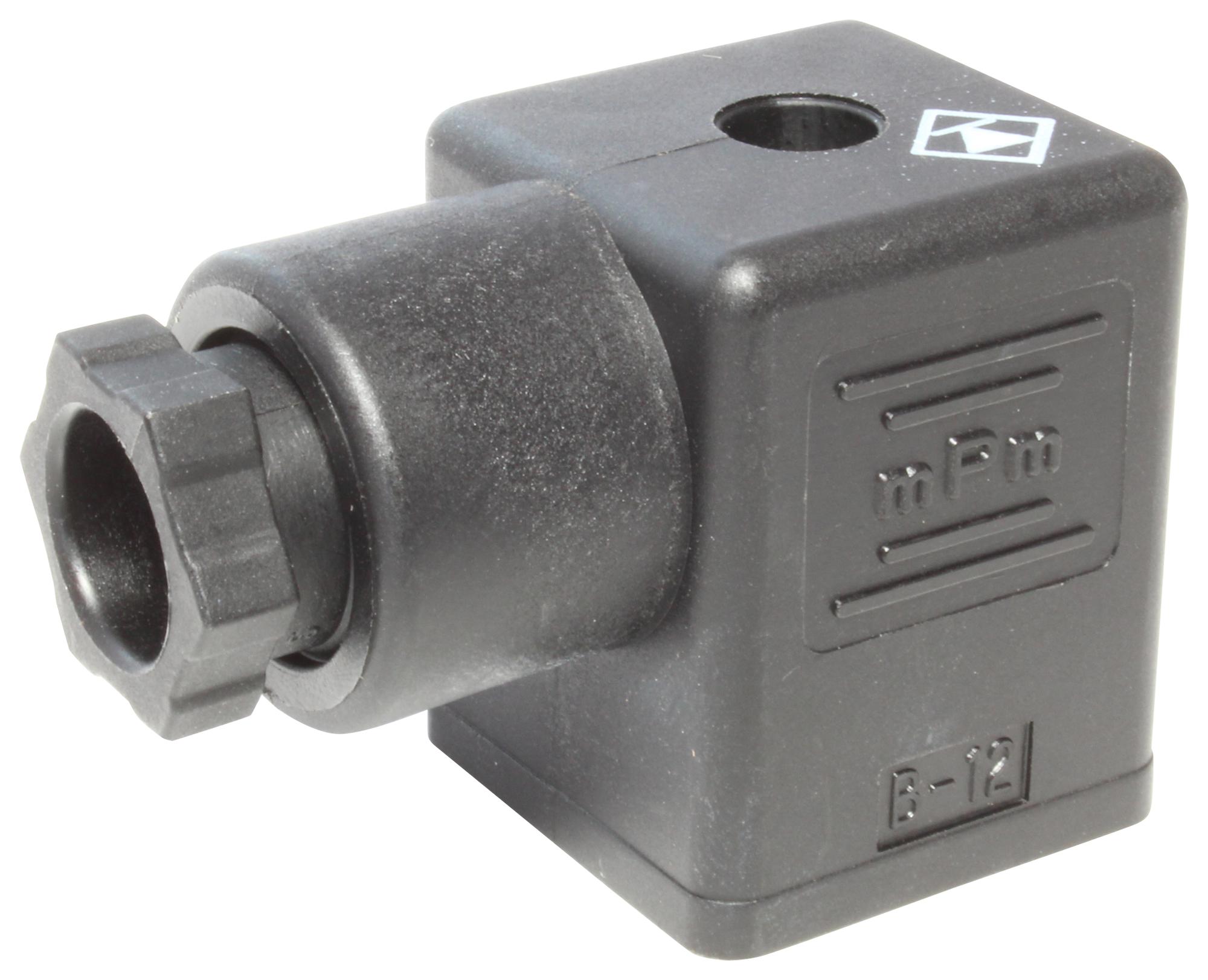

The mPm DIN Valve Connector is a robust 2-pole plus ground field-attachable connector designed for industrial valve applications. Featuring IP65/IP67 ratings, it ensures excellent protection against dust and water ingress. Made with brass contacts and polypropylene bodies, it supports a maximum voltage of 230V and current of 16A per contact. The connector incorporates a PG@ internal thread coupling type, a 90° angle orientation, and a VDR indicator, making it suitable for reliable, high-performance connections in demanding environments with operating temperatures from -40°C to +90°C. Its standardized pitch of 18mm ensures compatibility with various systems.
MOLEX 1210640900 DIN Valve Connector Specifications:
- Form A
- IP Rating: IP65, IP67
- Material - Contact: Brass
- Material - Connector Body: Polypropylene
- Material - Plating: Silver
- Coupling Type: Internal Thread
- Orientation: 90° Angle
- Pitch - Mating Interface: 18.00mm
- Poles: 2 plus ground
- Voltage - Maximum: 230V
- Current - Maximum per Contact: 16.0A
- Temperature Range - Operating: -40°C to +90°C
Buy the Buy Molex mPm DIN Valve Part Number 1210640900 Online
Order the Molex DIN Valve Connector online today to ensure secure, high-quality connections for industrial applications. Featuring IP65/IP67 ratings, brass contacts, polypropylene body, and a 90° angle, this connector supports 230V, 16A ratings. Its field-attachable design offers easy installation, while the VDR indicator enhances safety and diagnostics. Suitable for demanding environments with temperatures from -40°C to +90°C, this connector ensures durability and reliable performance in automation, control systems, and industrial equipment.
Buy Molex 1210640900 now and experience unmatched reliability and performance in industrial valve connections with robust IP65/IP67 protection.
Frequently Asked Questions
Where can I buy MOLEX 1210640900?
You can click on the BUY or RFQ button to purchase 1210640900 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1210640900?
You can download the 1210640900 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1210640900?
MOLEX
