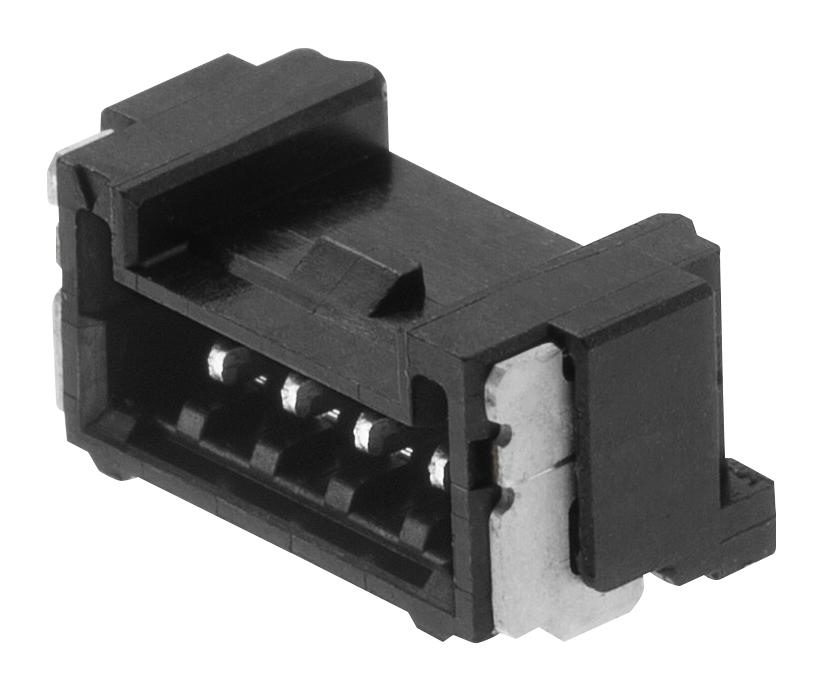

MOLEX 5055670571 Micro-Lock Plus Header
The Micro-Lock PLUS Right Angle Header is a compact, durable wire-to-board connector system with a 1.25mm pitch and five circuits, plated with tin-bismuth for enhanced corrosion resistance. Designed for reliable electrical connections, it features a black resin body, polarization, and stacking capabilities, making it suitable for complex electronic assemblies. Its operating temperature range from -40°C to +105°C and maximum current of 1.5A per contact ensure high performance in various applications, including consumer electronics, industrial controls, and communication devices.
MOLEX 5055670571 Micro-Lock Plus Header Specifications:
- Pitch - Mating Interface: 1.25mm
- Number of Circuits (Loaded): 5
- Circuits (Maximum): 5
- Color - Resin: Black
- Durability (Mating Cycles Max): 30
- Operating Temperature Range: -40°C to +105°C
- Material - Metal: Brass
- Material - Plating Mating: Tin-Bismuth
- Material - Plating Termination: Tin-Bismuth
- Material - Resin: Polyamide
- Current - Maximum per Contact: 1.5A
- Voltage - Maximum: 50V AC (RMS)/DC
- Net Weight: 182.567 mg
- Surface Mount Compatible: Yes
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Packaging: Embossed Tape on Reel
- RoHS Compliance: Yes
- Halogen-Free: No
Buy the Molex Series Micro-Lock Plus Wire-to-Board Connector: 5055670571
Purchase the Molex Micro-Lock Plus Header online today to ensure reliable, high-quality connections for your electronic projects. With a 1.25mm pitch, five circuits, and tin-bismuth plating, this right angle connector offers durability and precise fitment. Its operating temperature range from -40°C to +105°C and maximum current of 1.5A per contact make it suitable for various industrial, consumer electronic, and communication applications. Easy to install and compatible with surface-mount technology, ensuring your assembly remains secure and efficient.
Get Molex Micro-Lock PLUS 5055670571 today—built for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 5055670571?
You can click on the BUY or RFQ button to purchase 5055670571 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5055670571?
You can download the 5055670571 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5055670571?
MOLEX
