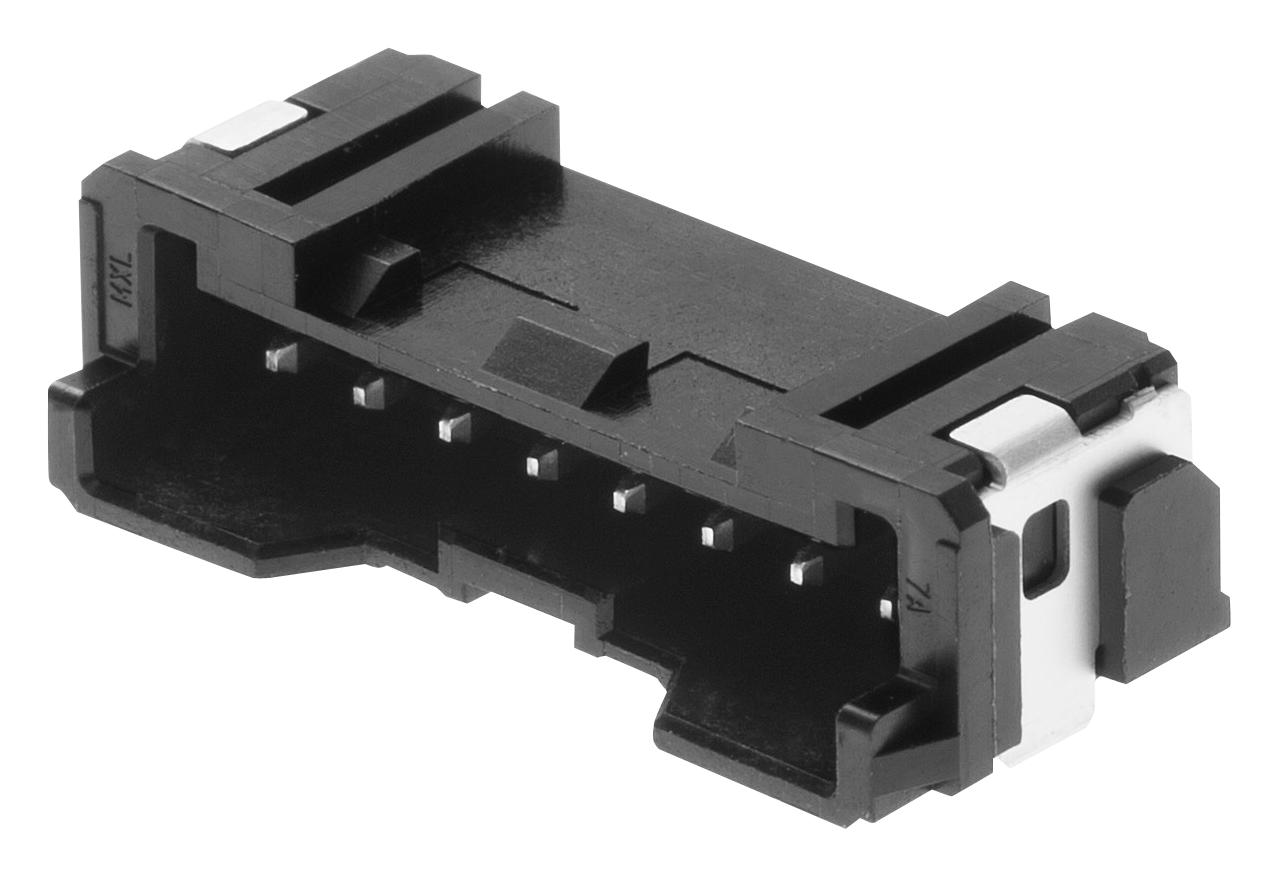

MOLEX 5055780771 Wire-to-Board Connector
The Micro-Lock Plus Right Angle Header with a 2.00mm pitch is a durable wire-to-board connector designed for reliable electrical connections in compact electronic assemblies. Featuring a single row of 7 circuits, it has matte tin-plated brass contacts and a black polyamide housing that withstands operating temperatures from -40°C to +105°C. This high-quality component supports up to 3.0A current per contact and 250V AC/DC voltage, ensuring safe and efficient performance. Its stackable, surface-mount design makes it ideal for space-constrained applications requiring robust, long-lasting connectivity.
MOLEX 5055780771 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 2.00mm
- Number of Circuits: 7
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Polyamide
- Durability (mating cycles max): 30
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 250V AC/DC
- Guide to Mating Part: Micro-Lock PLUS Receptacle Housing
- Packaging: Embossed Tape on Reel
- Orientation: Right Angle
- Net Weight: 806.960 mg
- Lock to Mating Part: Yes
- PCB Retention: Yes
- Polarized to Mating Part: Yes
- Stackable: Yes
- Termination Interface: Surface Mount
- Plating min - Mating: 1.000 µm
- Plating min - Termination: 1.000 µm
Buy the Molex Series Micro-Lock Plus Wire-to-Board Connector: 5055780771
Discover the reliable and high-performance Micro-Lock Plus Wire-to-Board Connector with a 2.00mm pitch, designed for compact electronic devices. Featuring a durable polyamide housing and brass contacts with matte tin plating, it supports up to 3.0A per contact and 250V AC/DC, ensuring safe operation across a temperature range of -40°C to +105°C. Its easy-to-mate right-angle design, stackability, and surface-mount termination make it ideal for space-constrained applications requiring secure, long-lasting electrical connections, available for purchase online now.
Get Molex 5055780771 today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 5055780771?
You can click on the BUY or RFQ button to purchase 5055780771 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5055780771?
You can download the 5055780771 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5055780771?
MOLEX
