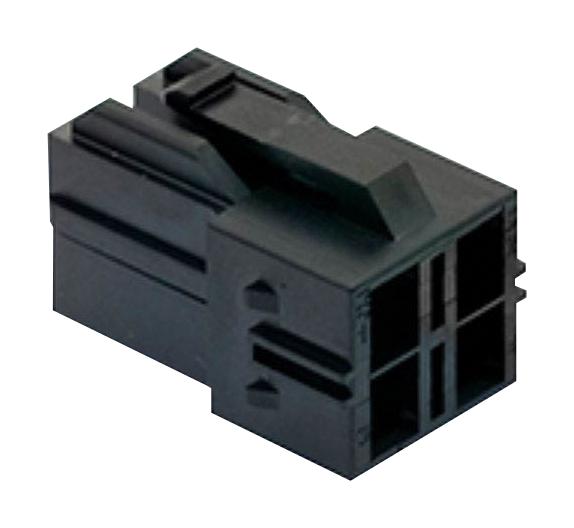

MOLEX 1510492406 CP-6.5 Receptacle Housing
The MOLEX 151049-2406 CP-6.5 Receptacle Housing is a critical component in wire-to-board connector systems. Designed with a 6.50mm pitch and dual-row layout, it provides a robust and reliable connection for various applications. The polarized design and positive lock mechanism ensure secure mating, while the black resin construction offers durability and aesthetic appeal. This housing is ideal for applications requiring a compact and efficient wire-to-board interface, commonly found in automotive, industrial, and consumer electronics.
MOLEX 1510492406 CP-6.5 Receptacle Housing Specifications:
- circuits_maximum: 4
- color_resin: Black
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: PBTP
- net_weight_g: 1.856
- number_of_rows: 2
- packaging_type: Bag
- pitch_mating_interface_mm: 6.50
- pitch_termination_interface_mm: 6.50
- polarized_to_mating_part: Yes
- temperature_range_operating_c: -40° to +105°
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Not Contained Per -ED/88/2018
- halogen_free_status: Not Low-Halogen
- rohs_phalates: Not Contained
- series: 151049
