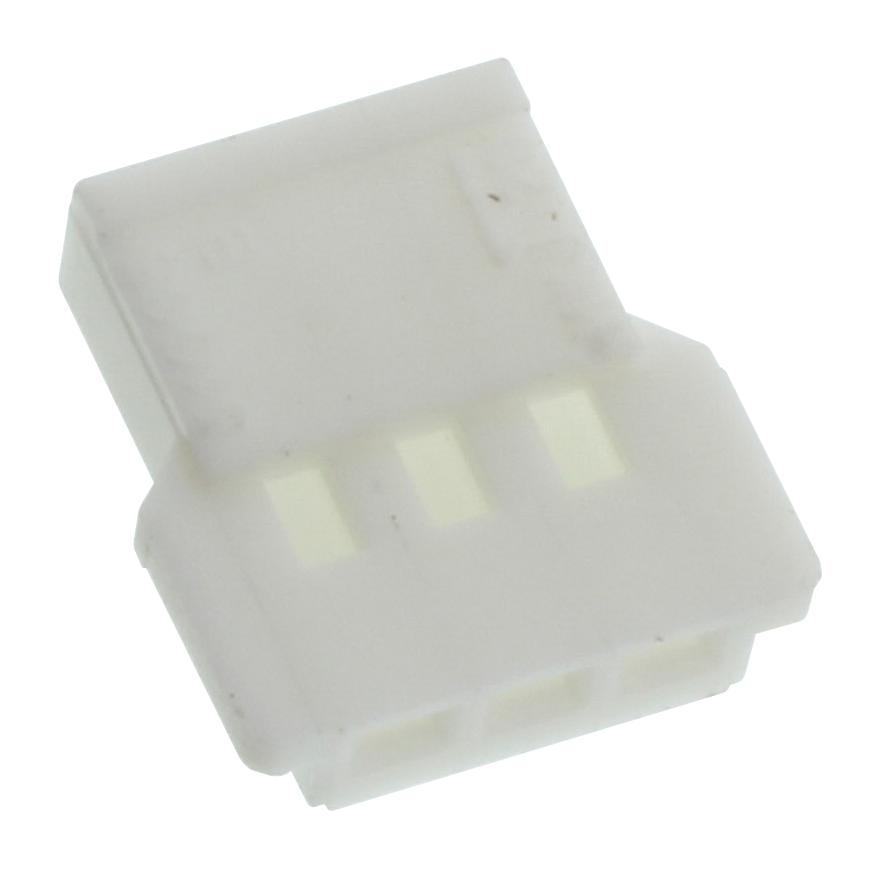

MOLEX 510050300 Wire-to-Wire Receptacle
This is a 2.00mm pitch wire-to-wire receptacle housing designed for signal applications with a maximum of 3 circuits. The housing is made from halogen-free, UL 94V-0 rated polyester resin, ensuring safety and environmental compliance. Suitable for wiring systems operating between -40°C and +105°C, it features a natural color and a panel mount design. The receptacle is compatible with the 51006 male housing and supports current up to 2.0A per contact, making it ideal for reliable, high-quality electrical connections in various industries.
MOLEX 510050300 Wire-to-Wire Receptacle Specifications:
- Pitch - Mating Interface: 2.00mm
- Number of Circuits: 3
- Color - Resin: Natural
- Material - Resin: Polyester
- Flammability: 94V-0
- Halogen-Free: Yes
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 2.0A
- Net Weight: 107.000 mg
- Packaging Type: Bag
- Gender: Receptacle
- Mates With: 51006 Male Housing
- Agency Certification: UL E29179, EU ELV, CSA LR19980
- RoHS Compliance: Yes, China RoHS
- Panel Mount: No
- Stackable: No
Buy the Molex Series 51005 Wire-to-Wire Receptacle Housing: 0510050300
Discover the high-performance Molex Series 51005 wire-to-wire receptacle housing with a 2.00mm pitch and three circuits, crafted from UL 94V-0 rated halogen-free polyester resin. Designed for signal wiring, it operates efficiently between -40°C and +105°C, supporting currents up to 2.0A per contact. This reliable connector offers easy integration with compatible male housings and ensures safety compliance with UL and RoHS standards. Perfect for professional wiring projects requiring durable, environmentally friendly, and high-quality electrical connections, order online now for quick delivery and seamless installation.
Order your Molex Series 51005 2.00mm Pitch Wire-to-Wire Receptacle Housing today and ensure reliable, high-quality electrical connections for your projects.
Frequently Asked Questions
Where can I buy MOLEX 510050300?
You can click on the BUY or RFQ button to purchase 510050300 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 510050300?
You can download the 510050300 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 510050300?
MOLEX
