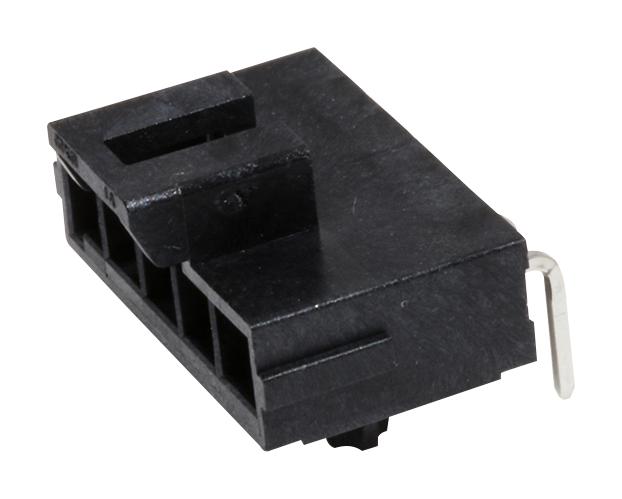

MOLEX 1723101105 Right-Angle Header
The MOLEX 172310-1105 is a right-angle header within the Ultra-Fit Power Connectors series. This connector offers a 3.50mm pitch and is designed for wire-to-board applications. Constructed with a copper alloy and liquid crystal polymer, it provides durability and reliable performance. The header features tin (Sn) plating for enhanced conductivity and is glow-wire capable, meeting specific safety standards. It is ideal for applications requiring a compact and robust connection solution.
MOLEX 1723101105 Right-Angle Header Specifications:
- overview: Ultra-Fit Power Connectors
- description: Ultra-Fit Right-Angle Header, 3.50mm Pitch, Single Row, 5 Circuits, Tin (Sn) Plating, Black, Glow-Wire Capable
- agency_certification: CSA LR19980, UL E29179
- series: 172310
- application: Wire-to-Board
- circuits_loaded: 5
- circuits_maximum: 5
- color_resin: Black
- durability_mating_cycles: 25
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: Yes
- guide_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Copper Alloy
- material_plating_mating: Tin over Nickel
- material_plating_termination: Tin over Nickel
- material_resin: Liquid Crystal Polymer
- net_weight_g: 1.495
- number_of_rows: 1
- orientation: Right Angle
- pc_tail_length_mm: 3.20
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 3.50
- pitch_termination_interface_mm: 3.50
- plating_min_mating_um: 1.524
- plating_min_termination_um: 1.524
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Fully
- surface_mount_compatible: Yes
- temperature_range_operating_c: -40° to +120°
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 14.0
- voltage_maximum_ac_rms_dc: 400V
- max_process_temp_seconds: 090
- max_cycles_process_temp: 002
- process_temp_max_c: 260
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: Ultra-Fit Receptacle Housing 172256
