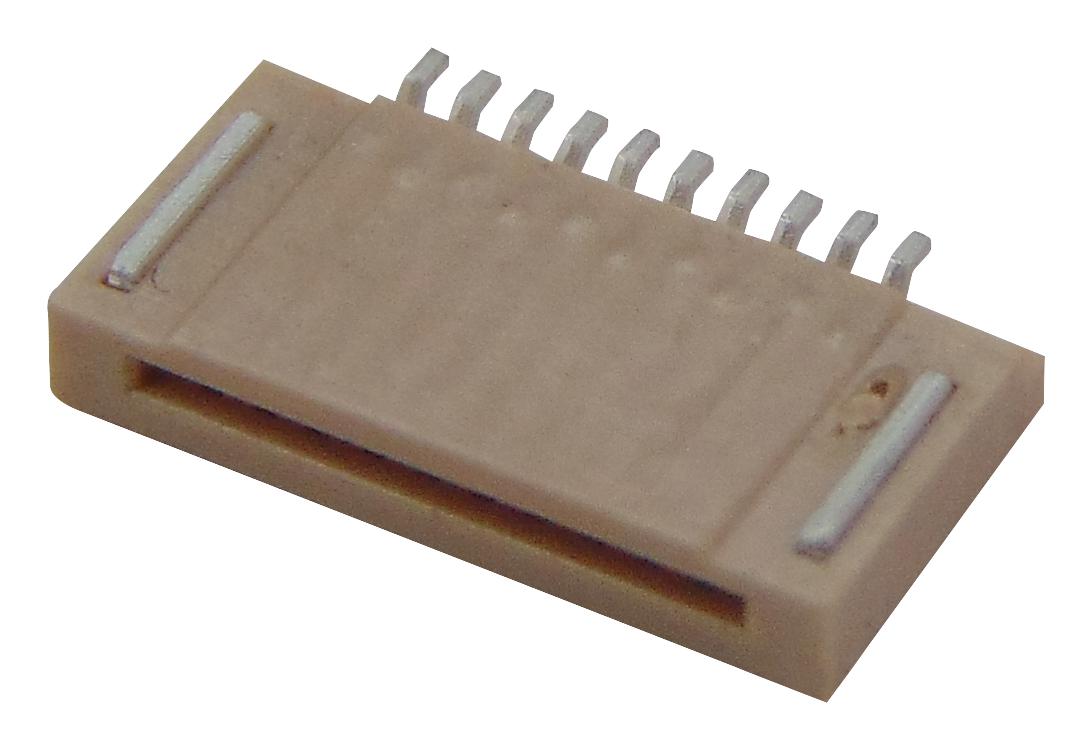

MOLEX 512811694 FFC/FPC Connector
The Molex 0512811694 is a 0.50mm pitch SMT FFC/FPC connector featuring a surface-mount, right-angle, non-ZIF design with dual contact style and gold plating. It supports 16 circuits, has a mated height of 1.20mm, and is suitable for flexible and flat cables in compact electronic applications. Designed for durability up to specified mating cycles, this connector ensures reliable electrical connections with a maximum current of 0.5A per contact and voltage of 50V. Its high-quality materials include phosphor bronze contacts with gold and tin plating, making it ideal for space-constrained and high-performance electronic assemblies.
MOLEX 512811694 FFC/FPC Connector Specifications:
- Pitch - Mating Interface: 0.50mm
- Circuits: 16
- Mated Height: 1.20mm
- Material - Metal: Phosphor Bronze
- Plating - Mating: Gold
- Plating - Termination: Tin
- Color - Resin: Natural
- Actuator Type: Dual Contact
- Surface Mount Compatible: Yes
- Orientation: Right-Angle
- Temperature Range - Operating: -20°C to +85°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V
- Net Weight: 100.047 mg
- Durability: Not specified but designed for multiple mating cycles
- RoHS Compliant, Low-Halogen, Halogen-Free, REACH SVHC Not Contained
Buy the Buy Molex FFC-FPC Connector Part Number 0512811694 Online
Order the Molex FFC/FPC Connector Part Number 0512811694 online today to ensure your electronic projects benefit from a compact, durable, and reliable flexible flat cable connector. Designed for surface-mount applications, this 0.50mm pitch connector features 16 circuits, gold plating, and a right-angle orientation. Its excellent electrical performance, high durability, and RoHS compliance make it ideal for space-constrained electronic assemblies requiring high-quality connections with up to 0.5A current capacity and 50V voltage rating. Secure your order now for swift delivery and dependable performance.
Buy Molex 0512811694 now and experience unmatched reliability and performance with a high-quality, space-efficient flexible cable connector.
Frequently Asked Questions
Where can I buy MOLEX 512811694?
You can click on the BUY or RFQ button to purchase 512811694 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 512811694?
You can download the 512811694 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 512811694?
MOLEX
