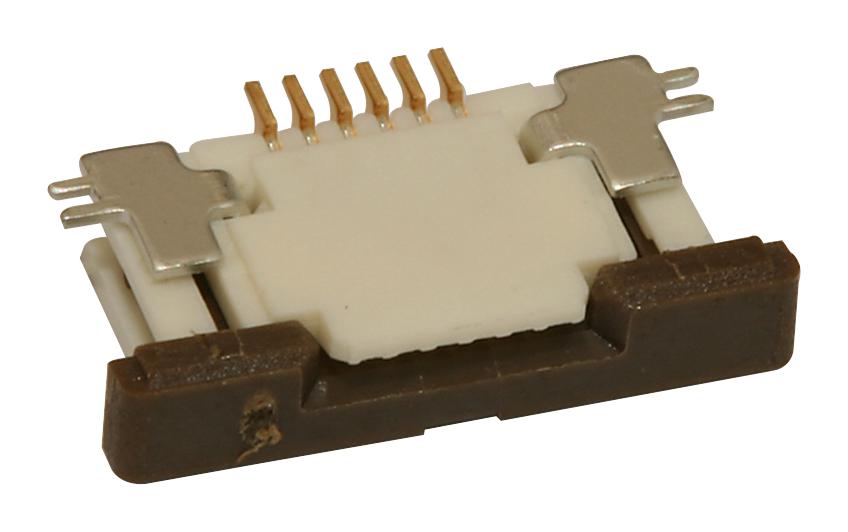

MOLEX 527461833 FFC Connector
The Easy-On FFC-FPC Connector with 0.50mm pitch is designed for reliable surface-mount applications featuring a right-angle slider and bottom contact. It supports 18 circuits, operating within a temperature range of -40°C to +85°C, with a maximum voltage of 50V and current of 0.5A per contact. Made from nylon with phosphor bronze contacts plated in silver and tin-bismuth, it offers high durability up to 20 mating cycles. Its compact design makes it ideal for flexible flat cable connections in electronic devices.
MOLEX 527461833 FFC Connector Specifications:
- Pitch: 0.50mm
- Number of circuits: 18
- Maximum Voltage: 50V
- Maximum Current: 0.5A per contact
- Operating Temperature: -40°C to +85°C
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Silver, Tin-Bismuth
- Material - Plating Termination: Tin-Silver-Bismuth
- Material - Resin: Nylon
- Durability: Up to 20 mating cycles
- Actuator Type: Slider
- Mounting: Surface Mount
- Mated Height: 2.00mm
- Color - Resin: Natural
- Flammability: UL 94V-0
- Certification: CSA, UL, RoHS compliant
Buy the Molex 0527461833 – Reliable FFC Connector for Industrial Applications
Purchase your Molex Series 0527461833 FFC connector now for secure, reliable flexible cable connections in industrial electronics. Designed with a 0.50mm pitch, this surface-mount connector supports 18 circuits with a durable slider mechanism, supporting up to 20 mating cycles. Made from high-quality nylon with phosphor bronze contacts plated in silver and tin-bismuth, it operates efficiently within -40°C to +85°C. Perfect for compact, high-performance electronic assemblies, it ensures a stable, long-lasting connection—order online today for fast, convenient delivery and technical support.
Order your Molex Series 0527461833 FFC connector today and ensure high-quality, reliable connections in your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 527461833?
You can click on the BUY or RFQ button to purchase 527461833 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 527461833?
You can download the 527461833 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 527461833?
MOLEX
