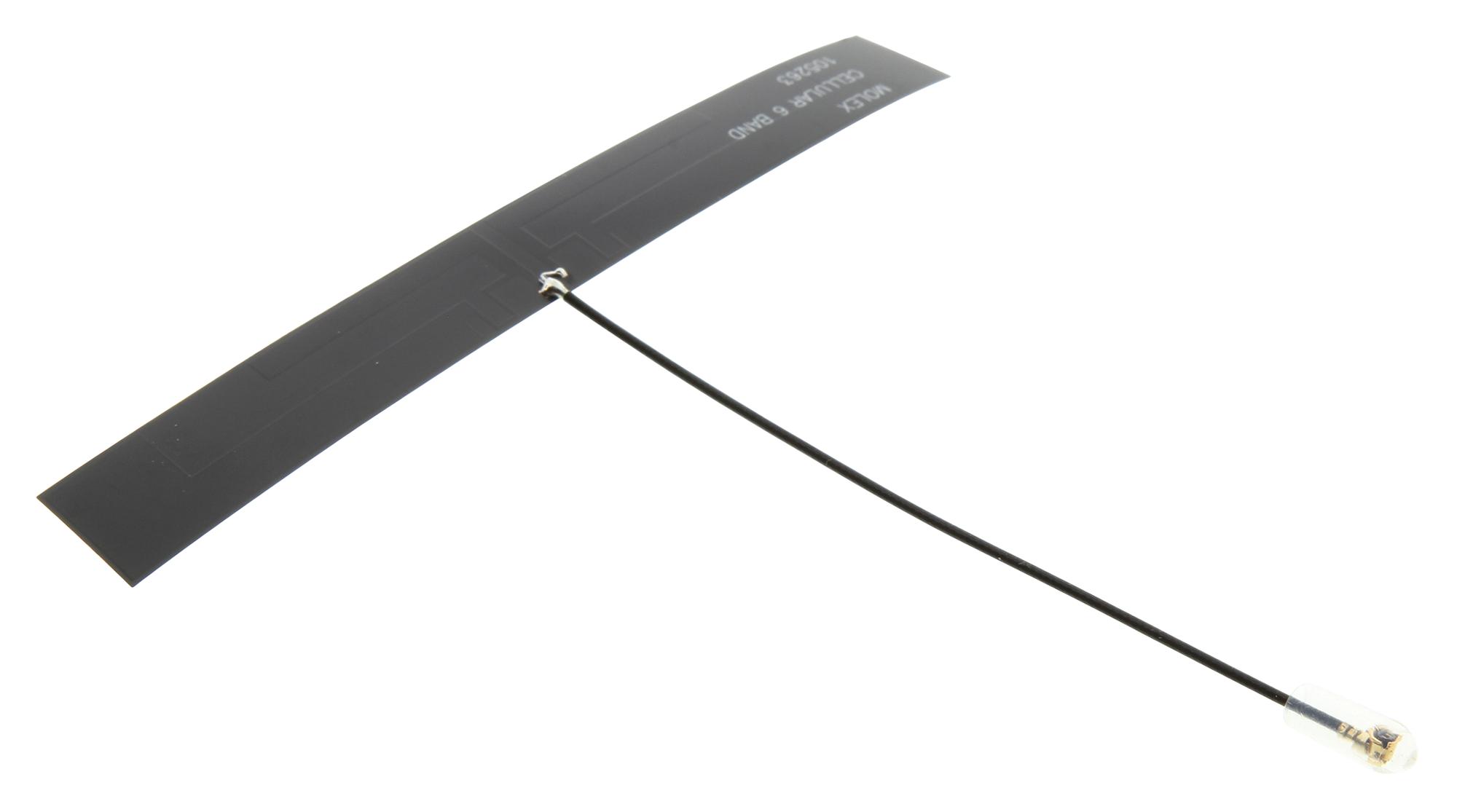

MOLEX 1052630003 Cellular 6-Band Stand Alone Antenna
The MOLEX 105263-0003 is a cellular 6-band stand-alone antenna engineered for robust wireless connectivity across a wide range of frequencies. This antenna is ideal for applications requiring reliable cellular communication, such as IoT devices, industrial automation, and telecommunications infrastructure. It features a 200.00mm cable length, facilitating flexible placement and integration. The adhesive mounting style ensures secure attachment to various surfaces. With a peak gain of 2.2 dBi at 824 MHz and 3.0 dBi at 1710 MHz, this antenna delivers strong signal performance. It is RoHS compliant and designed for low-halogen content, aligning with environmental sustainability standards.
MOLEX 1052630003 Cellular 6-Band Stand Alone Antenna Specifications:
- cable_length: 200.00mm
- length: 106.70mm
- mounting_style: Adhesive
- net_weight: 1.220/g
- packaging_type: Tray
- polarization: Linear
- radiation_pattern: Omnidirectional
- thickness: 0.10mm
- width: 13.00mm
- band_1_f_end_mhz: 894
- band_1_f_start_mhz: 824
- band_2_f_end_mhz: 960
- band_2_f_start_mhz: 880
- band_3_f_end_mhz: 1880
- band_3_f_start_mhz: 1710
- band_4_f_end_mhz: 1990
- band_4_f_start_mhz: 1850
- band_5_f_end_mhz: 2170
- band_5_f_start_mhz: 1920
- band_6_f_end_mhz: 2690
- band_6_f_start_mhz: 2500
- peak_gain_dbi: 2.2 @ 824 MHz, 3.0 @ 1710 MHz
- return_loss_s11_db: < -7.5
- total_efficiency: > -1.9dB @ 824 MHz, > -2.2dB @ 1710 MHz
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
