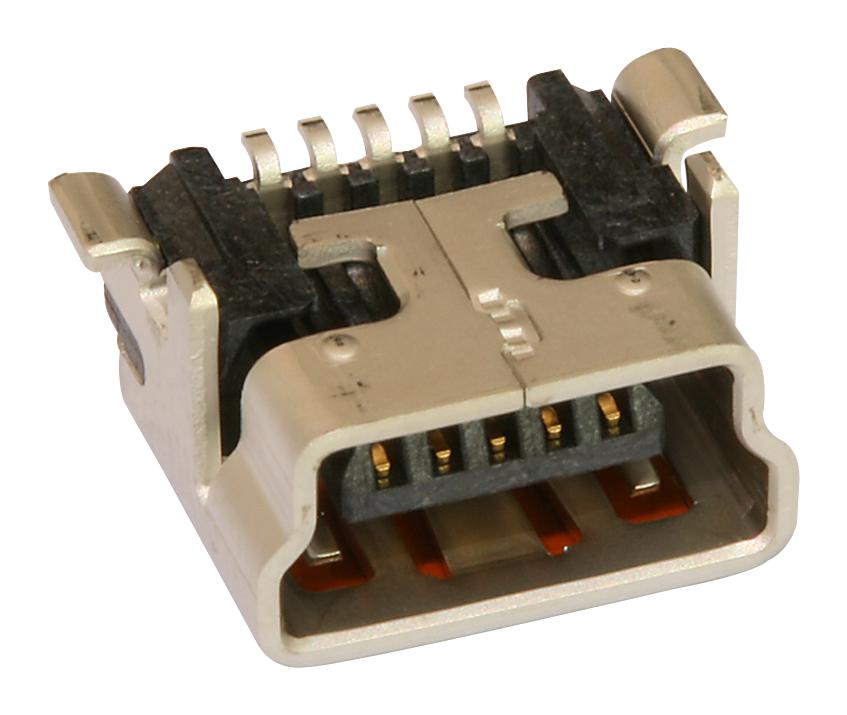

MOLEX 513870530 USB Mini B Receptacle
The Mini USB B-Receptacle is a surface-mount, right-angle connector designed for reliable wire-to-board connections in electronics. It features a short body, shielded design, and includes cover tape for reflow soldering, making it suitable for high-quality, lead-free assembly processes. It supports USB 2.0 and OTG standards with a 5-contact configuration, and is made from high-performance alloy and thermoplastic materials. Its compact size, polarized design, and compatibility with surface-mount technology ensure its application in various electronic devices requiring robust, space-efficient interfaces.
MOLEX 513870530 USB Mini B Receptacle Specifications:
- Termination Interface: Style Surface Mount
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 30V AC (RMS)/DC
- Material - Metal: High Performance Alloy (HPA), Phosphor Bronze
- Material - Resin: High Temperature Thermoplastic
- Color - Resin: Black Low-Halogen
- Plating Min - Mating: 0.762 um Gold
- Plating Min - Termination: 1.016 mm Tin
- Dimensions: Short body, right-angle design, pitch interface 0.80mm
- Number of Circuits: 5
- Cycle Life: Max. 001 at Max. Process Temperature
- Process Temperature Max.: 245°C
- Operating Temperature Range: 0°C to +50°C
- Surface Mount: Yes
- Reflow Capable: Yes
- Certification: RoHS Compliant, China RoHS
- Compatibility: US B 2.0, USB OTG, shielded design
- Connector Gender: Female
- Locking: Yes
- Packaging: Embossed Tape on Reel
- Polarity: Polarized to Mating and PCB
Buy the Molex 0513870530 – Reliable USB 2.0 Receptacle for Industrial Applications
Order the Molex USB Mini B Receptacle online today for premium quality, reliable performance, and easy integration into your electronic assemblies. Featuring a shielded, right-angle design and compatible with surface-mount technology, this connector ensures secure connections and excellent signal integrity. Its lead-free construction supports environmentally friendly manufacturing, while the polarization and locking features provide robustness in various applications. Ideal for industrial equipment, consumer electronics, and data communication devices, this high-performance connector guarantees durability and consistent operation in challenging environments.
Buy Molex 513870530 now and experience unmatched reliability and performance with this robust, surface-mount USB connector designed for demanding electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 513870530?
You can click on the BUY or RFQ button to purchase 513870530 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 513870530?
You can download the 513870530 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 513870530?
MOLEX
