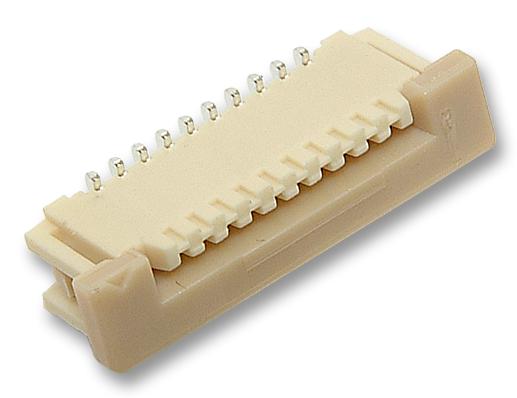

MOLEX 526101533 FFC-FPC Connector
The Easy-On FFC-FPC Connector features a 1.00mm pitch, vertical slider design, and supports 15 circuits with a height of 5.75mm. It is RoHS compliant and uses tin-silver-bismuth plating on a phosphor bronze contact for reliable electrical performance. Designed for surface-mount technology, this connector offers a maximum current of 1.0A per contact and an operating temperature range of -40°C to +85°C. Suitable for flat flexible cable and printed circuit board applications, it ensures secure and efficient connections in compact electronic assemblies.
MOLEX 526101533 FFC-FPC Connector Specifications:
- Pitch: 1.00mm
- Number of Circuits: 15
- Height: 5.75mm
- Current Rating: 1.0A per contact
- Operating Temperature: -40°C to +85°C
- Contact Material: Phosphor Bronze
- Plating: Silver, Tin-Bismuth
- Resin Material: Nylon
- Mated Height: 5.75mm
- Packaging: Embossed Tape on Reel
- Flammability: UL 94V-0
- Durability: 30 mating cycles
- Mounting Type: Surface Mount
- Voltage Maximum: 125V
- Color: Natural
- Wire/Cable Type: FFC/FPC
Buy the Molex 526101533 – Reliable FFC-FPC Connector for Industrial Applications
Enhance your electronic projects with the Molex FFC-FPC connector that offers a 1.00mm pitch, 15 circuits, vertical slider, and RoHS compliance. Designed for surface-mount applications, it provides reliable electrical performance with a maximum current of 1.0A per contact and a temperature range from -40°C to +85°C. Its compact design makes it ideal for space-constrained circuit board assemblies in industrial and consumer electronics. Compatible with premo-flex cables, this connector ensures secure and efficient connectivity in your manufacturing processes and prototypes.
Order your Molex Series526101533 FFC-FPC connector today and ensure reliable connections in your electronic assemblies with high durability and precision.
Frequently Asked Questions
Where can I buy MOLEX 526101533?
You can click on the BUY or RFQ button to purchase 526101533 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 526101533?
You can download the 526101533 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 526101533?
MOLEX
