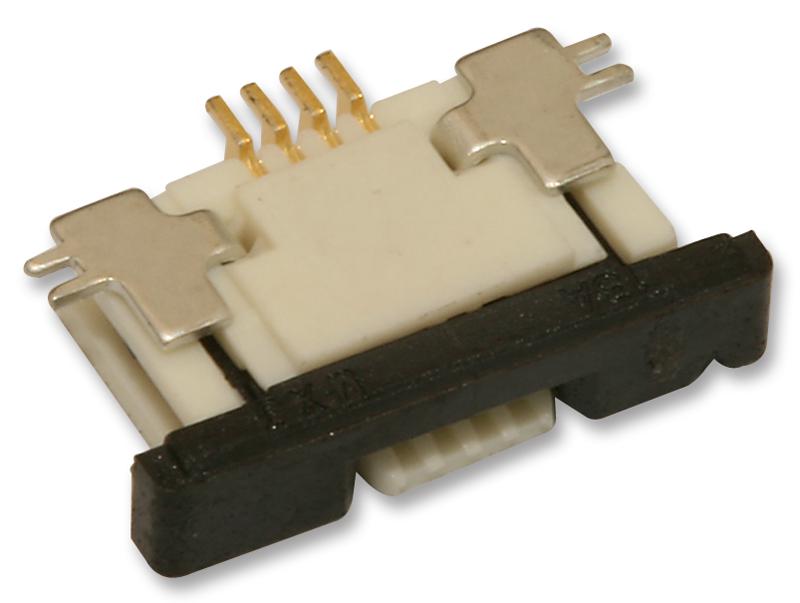

MOLEX 527450433 FFC/FPC Connector
The easy-on FFC/FPC connector features a 0.50mm pitch, right-angle top contact design, and a slider series for secure connections. It supports 4 circuits with tin-silver-bismuth plating, ideal for surface-mount PCB applications. Certified with UL and RoHS compliant, it withstands up to 20 mating cycles with operating temperatures from -40°C to +85°C. Made from durable nylon resin with phosphor bronze contacts, it provides reliable electrical performance at a maximum current of 0.5A and voltage of 50V, suitable for compact electronic assemblies and flexible circuit connections.
MOLEX 527450433 FFC/FPC Connector Specifications:
- Pitch: 0.50mm
- Number of Circuits: 4
- Contact Material: Phosphor Bronze
- Contact Plating: Tin-Silver-Bismuth
- Resin Material: Nylon
- Height: 2.00mm
- Mating Cycles: 20
- Operating Temperature: -40°C to +85°C
- Max Current: 0.5A per contact
- Max Voltage: 50V
- Orientation: Right Angle
- Actuator Type: Slider
- Surface Mount: Yes
- Packaging: Embossed Tape on Reel
- Flammability: UL 94V-0
- RoHS & REACH Compliant
Buy the Molex Series Slider FFC Connector: 0527450433
Order the Molex FFC/FPC Connector with 0.50mm pitch and right-angle design today. Featuring four circuits, tin-silver-bismuth plating, and surface-mount compatibility, this connector ensures reliable electrical performance for compact electronic devices. Certified with UL and RoHS, it withstands up to 20 mating cycles and operates reliably from -40°C to +85°C. Made from durable nylon with phosphor bronze contacts, it’s ideal for flexible circuits, offering excellent durability, efficiency, and easy installation in a variety of electronic applications.
Get Molex 0527450433 today—built for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 527450433?
You can click on the BUY or RFQ button to purchase 527450433 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 527450433?
You can download the 527450433 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 527450433?
MOLEX
