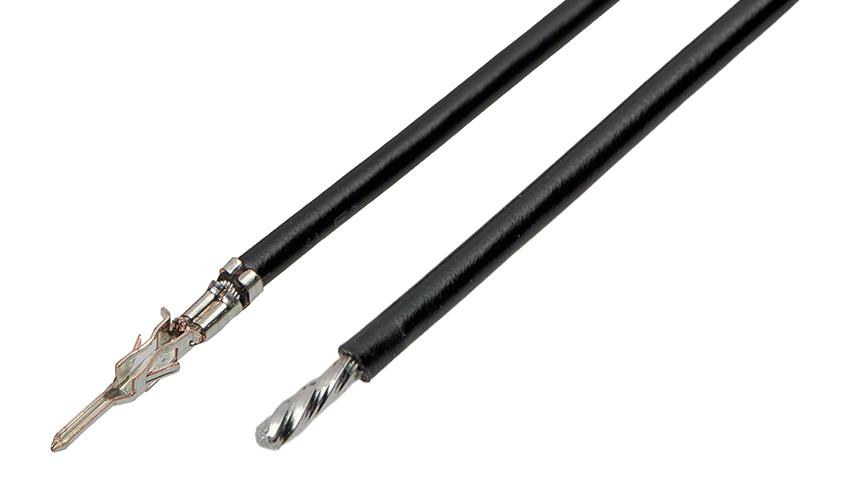

MOLEX 2147631202 Micro-Fit 3.0 Lead
The MOLEX 214763-1202 is a pre-crimped lead assembly designed for use with Micro-Fit 3.0 connectors. This lead provides a convenient and reliable connection for power and wire-to-wire applications. It features gold plating on the mating interface for improved conductivity and tin plating on the termination interface for secure crimping. The lead is constructed with phosphor bronze material and is suitable for various industrial and commercial applications requiring a robust and pre-terminated connection.
MOLEX 2147631202 Micro-Fit 3.0 Lead Specifications:
- Part Number: 2147631202
- Status: Active
- Overview: Off-the-Shelf Pre-Crimped Leads
- Description: Pre-Crimped Lead Micro-Fit 3.0 Male-to-Pigtail, Gold (Au) Plated, 150.00mm Length, 22 AWG, Black
- Product Family: Cable Assemblies
- Series: 214763
- Application: Power, Wire-to-Wire
- Assembly Configuration: Pre-crimped Lead Only
- Connector to Connector: Micro-Fit 3.0 Crimp Terminals
- UPC: 193264575084
- Cable Length: 150.00mm
- Circuits (Loaded): 1
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Net Weight: 0.715/g
- Plating min - Mating: 0.762µm
- Plating min - Termination: 2.540µm
- Single Ended: Yes
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 22
- Wire/Cable Type: UL 10002
- Current - Maximum per Contact: 8.5A
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- RoHS Phthalates: Not Contained
- Use With: Micro-Fit 3.0 Plug Housings 43020, 43640, Micro-Fit BMI Plug Housings 44300, 46625
