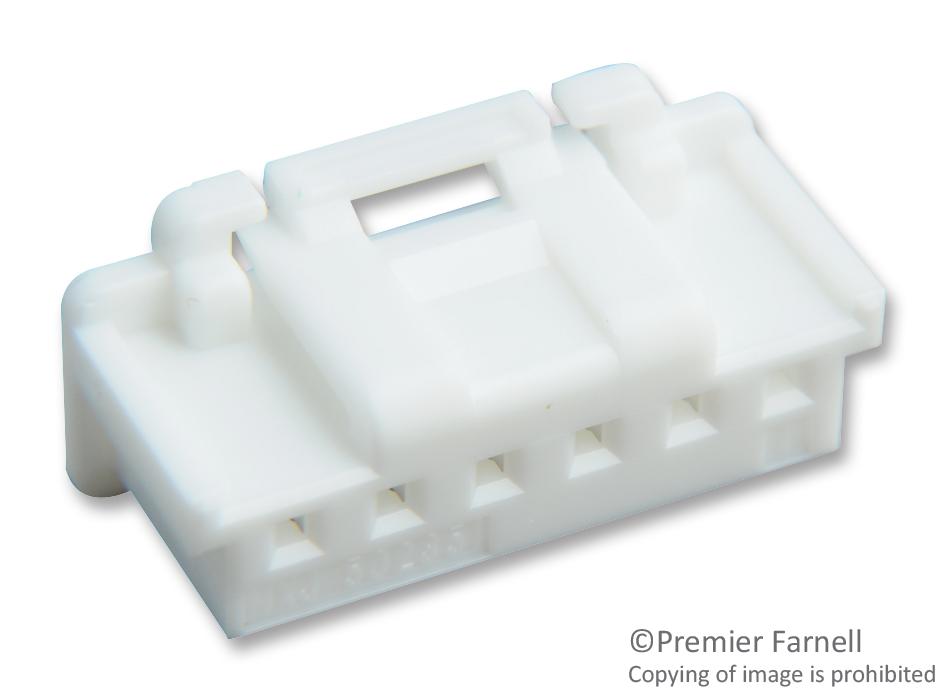

MOLEX 5023510600 wire-to-board connector housing
The 502351-0600 is a 6-circuit, single-row DuraClik wire-to-board receptacle housing designed for reliable signal and wire-to-board connections. Compatible with DuraClik crimp terminals for 26 to 22 AWG, it offers easy mating with 2.00mm pitch headers like 560020 and 502352. The natural-colored housing supports a maximum current of 3A per contact and operates within -40°C to 105°C. Suitable for automotive, industrial, consumer electronics, and commercial vehicle applications, it provides secure, vibration-resistant connections for demanding environments.
MOLEX 5023510600 wire-to-board connector housing Specifications:
- Number of Circuits: 6
- Color - Resin: Natural
- Gender: Receptacle
- Lock to Mating Part: Yes
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 3A
- Pitch - Mating Interface: 2.00mm
- Packaged in Bag
- Material: Thermoplastic housing
- Compatible with crimp terminals AWG 22-26
- Mates with 560020, 502352 headers
- RoHS Compliant, Halogen-Free, REACH SVHC Not Contained
Buy the Molex 5023510600 – Reliable Signal Connector for Industrial Applications
Purchase the Molex 5023510600 wire-to-board connector housing online today and ensure secure, vibration-resistant connections for your automotive, industrial, and consumer electronics projects. Engineered with a natural-colored thermoplastic housing, it is compatible with 26 to 22 AWG crimp terminals and supports a maximum current of 3A per contact. Operating within -40°C to 105°C, this part offers high reliability for demanding environments, simplifying assembly and providing durable, long-lasting electrical connections.
Buy Molex 5023510600 now and experience unmatched reliability and performance in industrial wiring and signal applications.
Frequently Asked Questions
Where can I buy MOLEX 5023510600?
You can click on the BUY or RFQ button to purchase 5023510600 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023510600?
You can download the 5023510600 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023510600?
MOLEX
